Product Details:
Payment & Shipping Terms:
|
Name: | Plastic Laminate Panels | Surface: | Lamination |
---|---|---|---|
Size: | 25cm × 7.5mm | Weight: | 2.5kg/sqm |
Packing Quantity: | 10pcs/bag | Feature: | Non Porous |
High Light: | laminate ceiling panels,pvc laminated ceiling board |
Non Porous Plastic Laminate Panels For Domestic Installations Sound Proofing
Plastic Laminate Panels Features:
For ceilings and walls in showers, bathrooms and wet rooms. PVC panels provide an ideal solution for shower wall panels, shower panels, ceiling panels and waterproof bathroom panelling, waterproof wall panels and much more!
-Full range of accessories available
-Easy to clean and hygienic, simply wipe clean
-A cost-effective alternative to tiling
-Non-porous and mould free
-Virtually maintenance free
-Provides excellent insulation and sound proofing
-Suitable for domestic installations
Plastic Laminate Panels Specification:
Product | PVC Panel |
Width | 25cm, 250mm, 10 inch |
Thickness | 7.5mm |
Length | 20GP with 5.8m, 40HQ with 5.95m |
Weight | 2.5-3kg/sqm |
Surface | Flat, lamination |
Package | 10pcs/bag |
Plastic Laminate Panels Packing:
1) Outer packing: PE film
2) Packing number: 10pcs/bag
3) Packing mark: We can print your company logo or OEM
PVC Panel Application:
1. Bathrooms: Due to the 100% water resistant property, PVC Panels are perfect for Bathrooms. This means past problems on walls and ceilings such as mould in plasterboard or grime build up on grouted tiles will no longer be an issue. PVC Panels can withstand heat up to 60 degrees celcius and no amount of hot showers will affect the Finished Surface Coatings on the panels.
2. Garages: With exposure to many different kind of liquids and industrial materials, garage walls and ceilings tend to break down rather quickly or soak up alot of the chemicals that stay around for a while. With PVC Plus Panels, garages can be kept cleaner and helps to keep things tidier as a result.
PVC Panel Fire Test Report:
| V03-1400167 | Specification | 250mm | ||||
| PVC Wall & ceiling Panel | Standard | BS EN 13501-1:2014 | ||||
| Measure Unit | Technical Requirement | Test Results | Individual Judgment | |||
| W/s | C | ≤250 | 102 | Compliant | ||
| m | Yes | Compliant | ||||
| MJ | ≤15 | 10.5 | Compliant | |||
| Surface | mm | ≤150 | 30 | Compliant | ||
Edge | 32 | Compliant | |||||
| m2/s2 | S2 | ≤180 | 172 | S3 Compliant | ||
| m2 | ≤200 | 166 | ||||
| ------ | d0 | No flaming droplets/particles occur within 600s | Yes | Compliant | ||
| ------ | No ignition of the filter paper | Yes | Compliant | |||
| The combustion performance of sample is Satisfied BS EN 13501-1:2014 about grade C-s3, d0. |

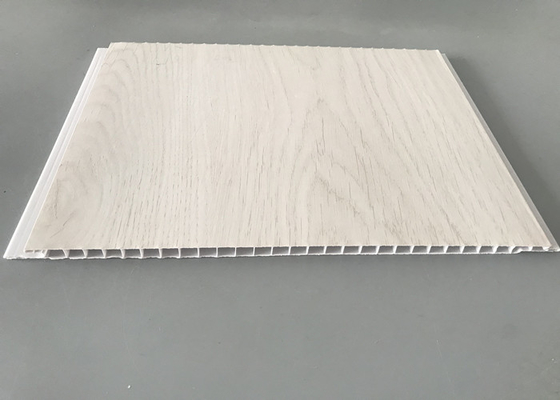

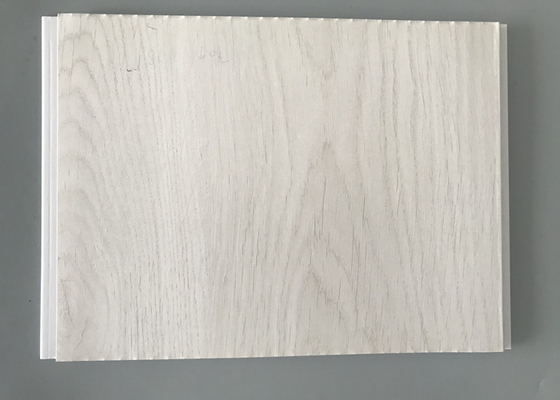

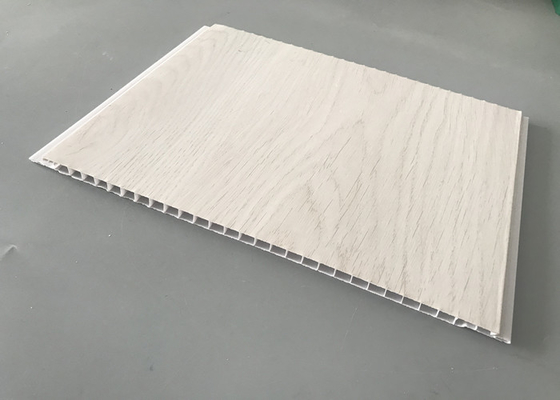

PVC Panel Showing:
