Product Details:
Payment & Shipping Terms:
|
| Thickness: | 2mm, 2.3mm, 2.5mm | Width: | 11300mm |
|---|---|---|---|
| Effective Width: | 1050mm | Length: | 11.8m, 5.9m, Customized |
| Number Of Wave: | 6 Pieces/5pieces | Material: | PVC Resin, Calcium Carbonate, And Other Subsidiary Materials |
| Color: | White | Application: | Warehouse, Factory, Commercial Center, House, |
| Surface: | Glossy | Weight: | 4.2-5.2KGS/square Meter |
| Life Time: | 15-20 Years | Structure: | 3 Layer |
| Shape: | Corrugated |
UPVC ROOFING SHEET, TEJAS DE UPVC
UPVC roofing sheets, Synthetic resin tiles are made with pvc resin and calcuim carbonate, so the price is cheaper, but it has the advantage of light weight, self-waterproof, toughness, thermal insulation, sound insulation, corrosion resistance, wind and earthquake resistance, hail resistance, pollution resistance, green environmental protection, fire resistance, insulation, easy installation, etc., and beautiful shape with strong three-dimensional sense, so it is widely used in various types of permanent building roof decoration.
T1130 thermal insulation UPVC roofing sheets:
| Descreption | Picture of structure | |
| Width | 1130mm |  |
| Effective width | 1050mm | |
| Thickness | 2mm, 2.3mm, 2.5mm | |
| Length | Customized | |
| Height of wave | 26mm | |
| Number of wave | 6 pieces | |
| Vertical overlap | 1 wave (63mm) | |
| Horizontal overlap | 0.2 -0.3m | |
| Componsition | 54% PVC, 44% calcium carbonate, 2% pvc stabilizer and others. | |
| Quality warranty | 15 years. | |
T1070 heat insulation UPVC roofing sheets for warehouse and factory:
| Descreption: | Picture of structure | |
| Width | 1070mm | |
| Effective width | 1000mm | |
| Thickness | 2mm, 2.3mm, 2.5mm | |
| Length | Customized | |
| Height of wave | 37mm | |
| Number of wave | 5pieces | |
| Vertical overlap | 1 wave (75mm) | |
| Horizontal overlap | 0.2 -0.3m | |
| Componsition | 54% PVC, 44% calcium carbonate, 2% pvc stabilizer and others. | |
| Quality warranty | 15 years. | |
Advantage of UPVC Roofing sheet, PVC synthetic tiles,
1.Heat insulation: The temperature difference indoor and outdoor could reach 8 to 10ºC. ASA PVC is 4 layers of PVC, this is good for heat insulation.
2.Fire proof: PVC roof sheet is a kind of safe building material, it has passed the building fire protection grade.
3.Color stable: Our roofing sheet has the anti-UV subsidiary material, it will not yellow-changing within 15 years.
4.Water proof: Water cannot pass through the pvc roof sheet.
5.Anti-corrosive: PVC roof sheet is highly resistant against chemical corrosion of acid, alkali, etc.
6.Anti-impact: PVC roof sheet has excellent load bearing performance and could withstand 150kgs. People could stand on the roof after installation.
7.Sound proof: PVC roof sheet has much less noise than other roof materials for example when it rains. lt can make noise 30db less than steel roof.
UPVC roof sheet, Tejas de upvc con cresta baja VS others material's roofing:

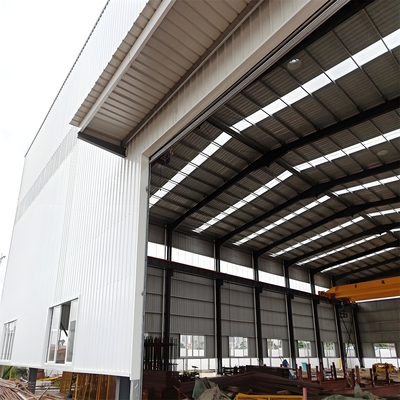

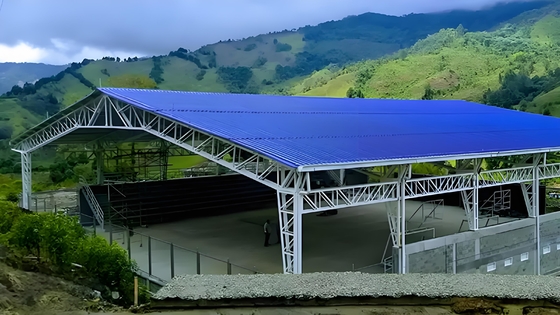

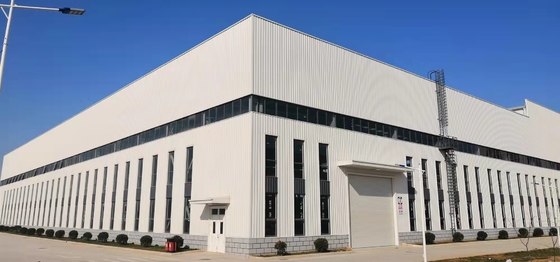

Application of UPVC roof sheet: Roofing and Wall for Factory, warehouse and farm etc.
Installation guide of PVC synthetic resin tiles, UPVC roof sheets:
1, The purlin space:
Thickness of 2.0mm or less, it is recommended that the inclined roof purlin span 600 mm or less, and the circular arch roofpurlin distance of 800 mm or less.
Thickness of 2.5mm, suggest slanting roof purlin span 800 mm or less, round arch Surface purlin span 900 mm or less.
Thickness of 3.0mm, suggest slanting roof purlin span 900 mm or less, round arch Surface purlin span 1000 mm or less.
| Thickness (mm). | “ T ” Design | “ R” Design |
| Thickness ≤ 1.3 mm | ≤ 500 mm | ≤ 700 mm |
| 1.3 mm < Thickness ≤ 2.0 mm | ≤ 700 mm | ≤ 800 mm |
| 2.0 mm < Thickness≤ 3.0 mm | ≤ 800 mm | ≤ 900 mm |
Note: Any thickness of the PVC tile, slanting roof purlin span should not exceed 900 mm, round arch roof purlin Span no more than 1000 mm, otherwise easy to plate deformation, leakage and fracture.
2, Roofing Pitches: ≥5%
3, Temps: The roofing sheets can keep its physical and mechanical performance between -30℃ to 56.6℃ .
4, There should not be permanent load on the sheets.
5, The horizontal overlap for Trapezoidal type is 1 waves, for corrugated type is 2 waves.
6, The vertical overlap for all roofing sheets is at least 200mm, for wall sheet is at least 120mm.
