Product Details:
Payment & Shipping Terms:
|
| Name: | Single Wall Polycarbonate Sheet | Type: | Outside |
|---|---|---|---|
| Density: | 1.2g/cm³ | Thickness: | 2mm |
| Standard Width: | 1200-2100mm | Application: | Solid Polycarbonate Roofing Sheets |
| High Light: | impact resistant polycarbonate sheet,uv blocking polycarbonate sheet |
||

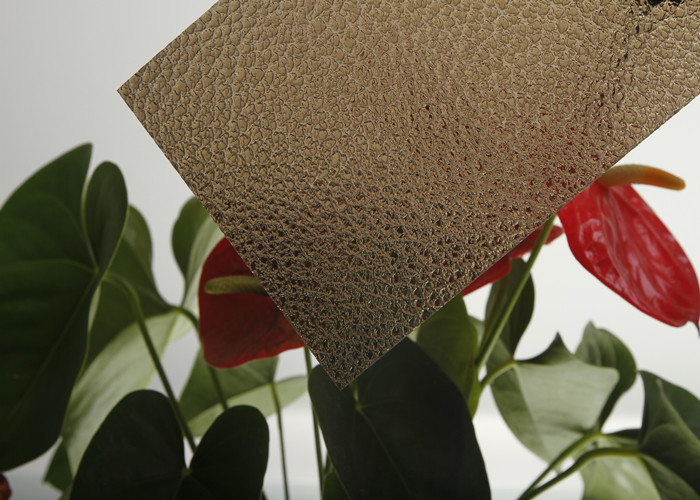

2mm Single Wall Polycarbonate Sheet , Solid Polycarbonate Roofing Sheets
Single Wall Polycarbonate Sheet Applications
Safety:Machine safety guards,safety barriers,machines enclosures,safety visors.
Viewing Panels:Noise control enclosures,switchgear cabinets,scientific instrumentation,forklift screens,duct worksite panels,earth moving machines.
Glazing:Bus shelters,sports stadiums,vandal protection,signage.
Machined Parts: Procision engineering components,insulating ports for electrical engineering,level indicators,medical and pharmaceutical devices,components in contact with food.
Single Wall Polycarbonate Sheet Dimensions
|
Thickness (mm)
|
Width×Length (mm) |
Min.Bend Radius (mm) |
Effect of the sound (db) |
Transmittance (%) |
|
2
|
2100 x Unlimited | 300 | 24 | 88 |
|
2.5-6
|
375-900 | 25-29 | 87-83 | |
|
8
|
1200 | 31 | 82 | |
|
9-12
|
1350-1800 | 31.5-34 | 81-78 |
Technical Data of Single Wall Polycarbonate Sheet
|
CHARACTERISTICS
|
DATA |
|
Impact Strength
|
850 J/m |
|
Light Tranmission
|
89%-50% |
|
UV Protection Layer
|
50 um |
|
Suitable Temperature
|
-40 ~ +120℃ |
|
Heat Deformation Temp.
|
140℃ |
|
Heat Conductivity
|
2.3-2.9 W/m2℃ |
|
Specific Heat
|
1.17 KJ/KG k |
|
Thermal Expansion Coefficient
|
0.065 mm/m℃ |
|
Bend Strength
|
100 N/mm2 |
|
Tensile Strength
|
>60 N/mm2 |
|
Tensile Force of Breaking
|
>65 N/mm2 |
|
Modulus of Elasticity
|
2400 MPa |
Single Wall Polycarbonate Sheet Application:
