25mm Multi Wall Polycarbonate Sheets For Trucks Aerodynamic Barrier High Impact

Product Summary
Multiwall Polycarbonate sheets for truck aerodynamic barrier white PC sheet, Multiwall Polycarbonate Sheets Construction Material Eco Friendly​. we are using 100% virgin imported material, front side is with 50um thickness of anti-UV layer, and we will give our client with 10 years quality guarantee...
Basic Properties
Place of Origin: Zhejiang, China
Brand Name: OASIS or OEM
Certification: ISO9001
Model Number: Polycarbonate sheet
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 200000 Sqm/Month
Product Description

Multiwall Polycarbonate sheets for truck aerodynamic barrier white PC sheet, Multiwall Polycarbonate Sheets Construction Material Eco Friendly​.



we are using 100% virgin imported material, front side is with 50um thickness of anti-UV layer, and we will give our client with 10 years quality guarantee. As for this 25mm thickness polycarbonate hollow sheets with 5-wall X-structure, diagonal supports are added on the basis of the rectangular section, so it improves the stiffness and the pressure-bearing performance of the sheets,meanwhile it plays a positive role in the lateral stability of the panel. So the characteristics of this kinds sheets are not only light weight and thermal insulation, but also with excellent impact strength.

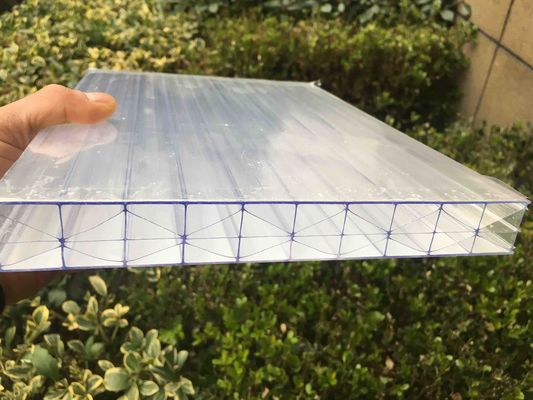

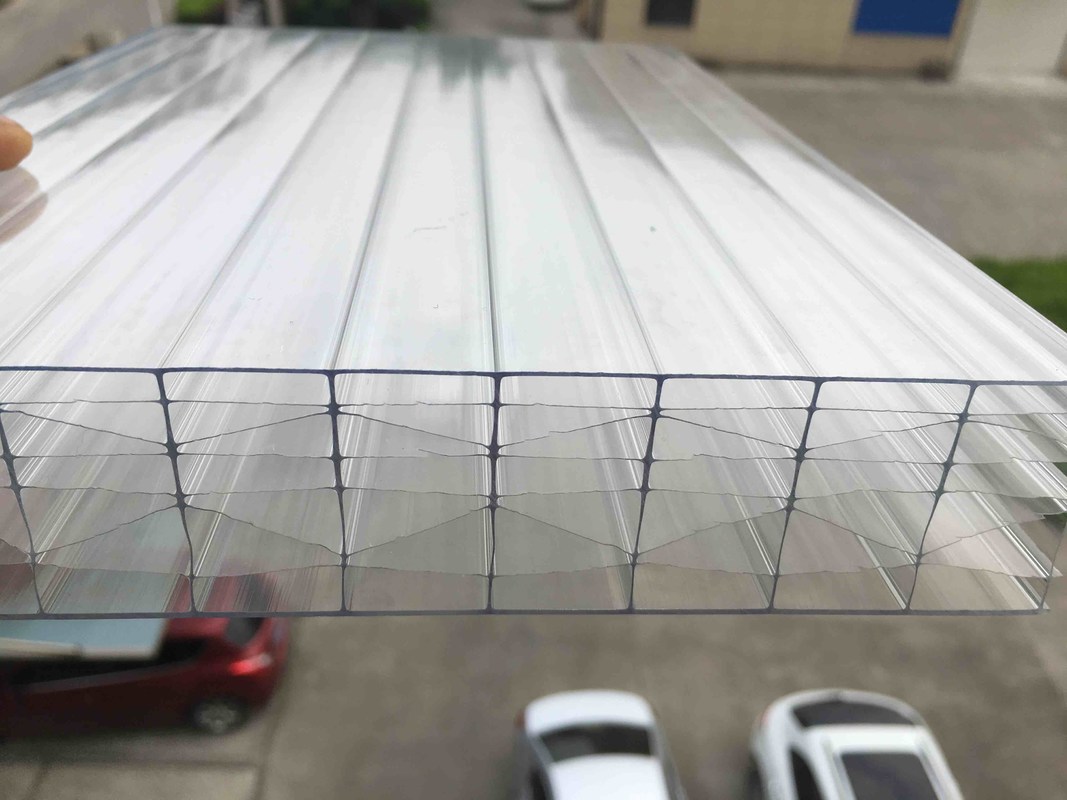

Structure X-Diamond 5-wall

Thickness 25mm
Weight 3.6kg/m2
Max Width 2100mm
Length could be as ordered
Light Transmission (Clear) 50%
U-value 1.51 W/㎡·K
Temperature Range -50℃ ~ +120 ℃
Tensile Strength 62 Mpa
Linear thermal expansion 10-3 /℃
Elongation at break >80%
Linear thermal Expansion 0.065mm/m℃





Detail size of PC sheets for aerodynamic barrier of trucks:



25mm Multi Wall Polycarbonate Sheets For Trucks Aerodynamic Barrier High Impact



25mm Multi Wall Polycarbonate Sheets For Trucks Aerodynamic Barrier High Impact

25mm Multi Wall Polycarbonate Sheets For Trucks Aerodynamic Barrier High Impact







Product Details
Highlight:

25mm polycarbonate roofing sheets

,

25mm polycarbonate plastic roof panel

,

multi wall polycarbonate plastic roof panel

Product Name: Polycarbonate Roofing Sheets
Color: Customized
Layer: Two Layer
Suitable Temperature: -40℃ — +120℃
Feature: Eco Friendly
Structure: R-Structure
