Product Details:
Payment & Shipping Terms:
|
| Name: | Polycarbonate Roofing Sheets | Feature: | High Light Transmission |
|---|---|---|---|
| Max Width: | 2.1m | Length: | As Requested |
| UV: | 50um | Application: | Greenhouse |
| High Light: | uv roof sheeting,double wall polycarbonate panels |
||

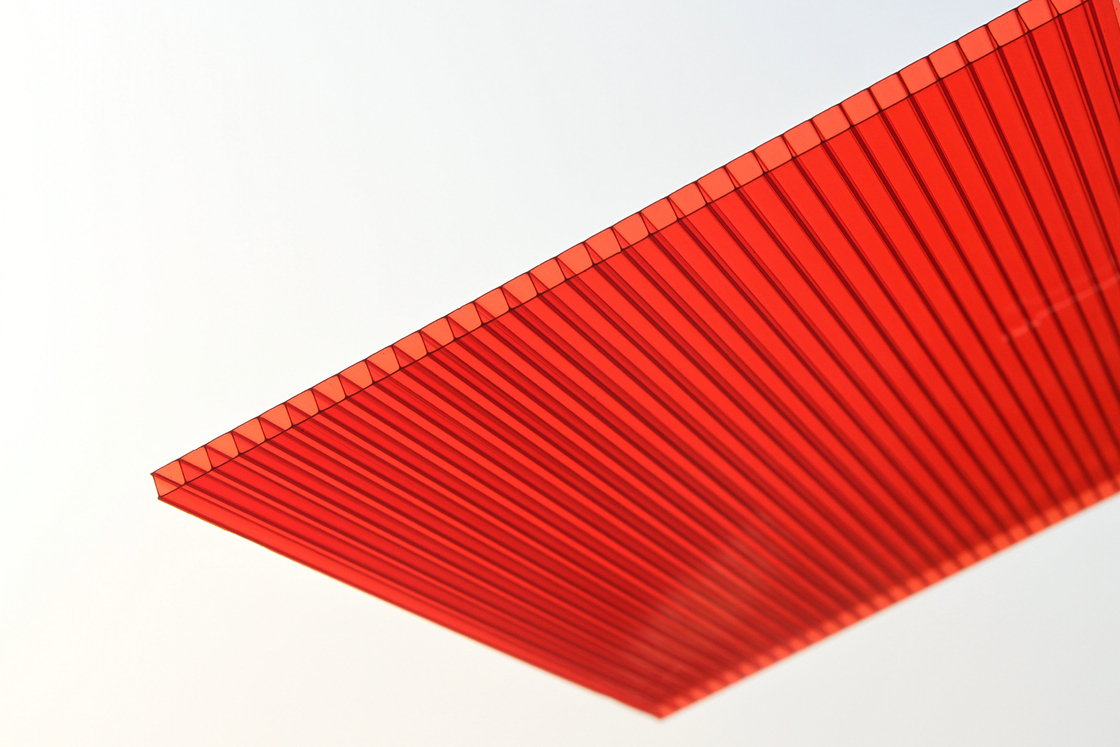

High Light Transmission Polycarbonate Roofing Sheets For Greenhouse Long Life
Polycarbonate Roofing Sheets Features
1) High light transmission
2) Light weight
3) High impact strength
4) UV protection
5) Saving energy
6) Sound insulation
7) Weather resistance
8) Flame resistance
9) Cold bending
10) Wind resistance
11) Use temperature range:-40 ℃--120 ℃
Polycarbonate Roofing SheetsStandard Colors
Clear, light blue, grass green, Opal, dark brown, royal-blue
Polycarbonate Roofing Sheets SPECIFICATION
|
Thickness(mm) |
Structure |
Weight |
Min. Bend Radius |
K value |
|
4 |
|
850 |
700 |
4.1 |
|
5 |
1000 |
875 |
3.8 |
|
|
6 |
1300 |
1050 |
3.6 |
|
|
8 |
1500 |
1400 |
3.3 |
|
|
10 |
1700 |
1750 |
3 |
|
|
6 |
|
1400 |
1050 |
3.4 |
|
8 |
1600 |
1400 |
3.2 |
|
|
10 |
1800 |
1750 |
2.7 |
|
|
12 |
2100 |
2100 |
2.6 |
|
|
14 |
2400 |
2450 |
2.4 |
|
|
16 |
2700 |
2800 |
2.3 |
Polycarbonate Roofing Sheets Technical date
1, High impact strength: the shock strength is 300 times than glass, and 30 times than PMMA;
2, With 50um UV layer, Anti UV protection and Anti aging.
3, Good light transmission and high heat insulation
4, Fireproof, belong to B1 level fireproof material
5, Good weather resistance, suitable temperature is from - 40 ~120ºC; soften temperature is at 148ºC
6, Elastle stress: 2400 MPa; Tensile stress: 63%; Nominal tensile strain:>50%
STANDARD COLOR AND LIGHT TRANSMISSION
|
Thickness(mm) |
4 |
5 |
6 |
8 |
10 |
|
Light transimission |
|||||
|
Clear |
80% |
78% |
76% |
74% |
72% |
|
Lake Blue |
56% |
54% |
51% |
49% |
48% |
|
Green |
55% |
52% |
51% |
48% |
46% |
|
Grass green |
54% |
52% |
50% |
46% |
44% |
|
Brown |
34% |
32% |
30% |
26% |
23% |
|
Blue |
33% |
31% |
28% |
25% |
20% |
|
Opal |
27% |
25% |
22% |
18% |
15% |
|
Advertising white |
16% |
14% |
12% |
9% |
8% |
HAINING OASIS BUILDING MATERIAL CO.,LTD is an professional manufacturer and exporter of polycarbonae sheets. Established on 2011 and Located at Haining city which is between Shanghai airport and Hangzhou Airport.
We have 3 advanced producing line for polycarbonate sheets. Our factory always focus on quality control, scientific management and R&D, so that we can supply the high quality, competitive price and best service for our clients. That is why our products enjoy good markets in worldwide, such as Latin America, Middle east, Africa and south asisa.
On 2015, we established first branch company at Bogota,Colombia, loacated at Calle 68 #22-43.
On 2016, we set another warehouse in Colombia, the address is Carrera 22#14-60,Bogota.
On 2017, we plan to set more warehouse in another city of Colombia, Such as Cali,Baranquilla.
With “quality first, best credit, clients supreme”, welcome warmly you to inquiry and visit us
