Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plastic Roofing Sheets | Size: | 6mm * 2.1m * 11.8m, Or Customized |
|---|---|---|---|
| Color: | Orange | Surface: | One Side With UV Layer |
| Feature: | Excellent Structural Durability | Application: | Building Skylight |
| High Light: | uv roof sheeting,double wall polycarbonate panels |
||

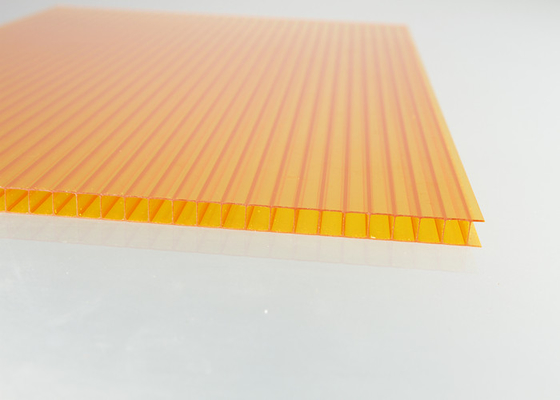

High Thermal Insulation Plastic Roofing Sheets / Clear Plastic Roof Sheets
Plastic Roofing Sheets is a basic type with light weight, also can be called double wall polycarbonate panels. It has another feature, UV resistant of one side which greatly help to extend service life. Polycarbonate hollow roofing sheet has the following advantages:
1. High thermal insulation
2. Extremely Lightweight yet impact resistant
3. High light transmission
4. Excellent structural durability
5. Weather and UV resistant
6. Blocks virtually all UV radiation
Plastic Roofing Sheets Specification
1. Standard size: Width 2100mm×Length 11800mm; size also could be ordered
2. Thickness: 6mm
3. Min. Bend Radius: 1050mm
4. K value: 3.6W/㎡K
Plastic Roofing Sheets Physical Data
|
soften temperature
|
148℃ |
|
suitable temperature
|
-40 ~120℃ |
|
Anti-fire rating
|
GB8624-1997, B1 level material |
|
elastle stress
|
2400MPa(1mm/rain.ISO 527) |
|
tensile stress
|
63MPa(at yeild 50mm/min.ISO 527) |
|
tensile strain
|
6%(at yeild 50mm/min.ISO 527) |
|
nominal tensile strain
|
>50%(at break 50mm/min.ISO 527) |
1. Roofing light sheet and sunshade for building
2. Skylight, lighting for corridors, balcony, passages,and subway entries, walkways
3. Conservatories, agricultural greenhouse, zoos, botanical gardens
4. Industrial roofing and glazing
5. Natatorium Swimming pools roofing/cover/sheet
