3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction

3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction
3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction 3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction 3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction

Large Image :  3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction

Product Details:
Place of Origin: Zhejiang, China
Brand Name: OEM
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 15days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 200000 Sqm/Month
Detailed Product Description
Name: 3mm Blue Polycarbonate Solid Sheet With High Impact Strength For Construction Type: Engineering Plastic
Density: 1.2g/cm³ Thickness: 1.5-12mm
Standard Width: 1200-2100mm Color: Blue
High Light:

impact resistant polycarbonate sheet

,

uv blocking polycarbonate sheet

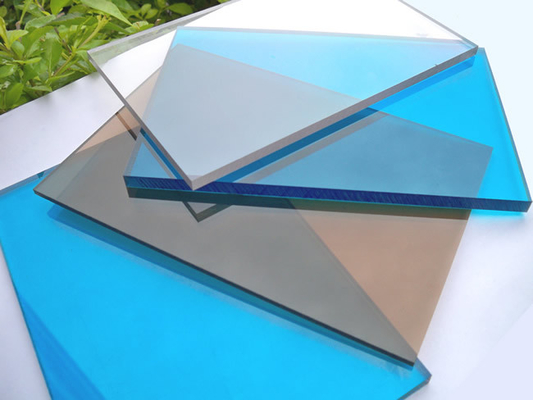

3mm Blue Polycarbonate Solid Sheet With High Impact Strength For Construction



Polycarbonate solid sheets have high impact strength, making them suitable for a wide range of applications ranging from industrial to safety to building and construction. Due to their impact strength and shatter resistance, polycarbonate solid sheets are virtually unbreakable



Properties of Solid Polycarbonate Sheets



1. High transparency (light transmission 50-89%)



2. Easy to process



3. Impact, hail and shatter resistant



4. Can be cold curved and thermofored



5. Coated sheets can have UV and scratch resistance and do not discolour



6. Excellent fire class rating



7. Electrical insulation



Standard Dimensions





Thickness

(mm)



Width×Length

(mm)

Min.Bend Radius

(mm)

Effect of the sound

(db)

Transmittance

(%)



1.5



1250 x Unlimited 225 23 89



2



2100 x Unlimited 300 24 88



2.5-6



375-900 25-29 87-83



8



1200 31 82



9-12



1350-1800 31.5-34 81-78



Technical Data of Polycarbonate Solid Sheet



 CHARACTERISTICS



 DATA



 Impact Strength



 850 J/m



 Light Tranmission



 89%-50%



 UV Protection Layer



 50 um



 Suitable Temperature



 -40 ~ +120℃



 Heat Deformation Temp.



 140℃



 Heat Conductivity



 2.3-2.9 W/m2℃



 Specific Heat



 1.17 KJ/KG k



 Thermal Expansion Coefficient



 0.065 mm/m℃



 Bend Strength



 100 N/mm2



 Tensile Strength



 >60 N/mm2



 Tensile Force of Breaking



 >65 N/mm2



 Modulus of Elasticity



 2400 MPa



Polycarbonate Solid Sheet Application:

Polycarbonate solid sheets are useful for many applications, such as machine guards windows, rooflights, bus shelters, protective visors and screens, etc.


Coated solid polycarbonate sheets are highly scratch resistant and can be used in aggressive environments. The transparency of solid polycarbonate sheets combined with its light weight allows for easy installation and makes it a popular alternative to glass for building and construction applications.



3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction 0



3mm Impact Resistant Polycarbonate Sheet , Blue Polycarbonate Sheet For Construction 1
