Quality first, Best credit, Clients supreme
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Makrolon / | Thickness: | 1.5mm~16mm |
|---|---|---|---|
| Max Width: | 2.1m | Length: | As Requested |
| Guarantee: | 10 Years | Color: | Clear/opal/red/blue/yellow/bronze |
| High Light: | impact resistant polycarbonate sheet,uv blocking polycarbonate sheet |
||

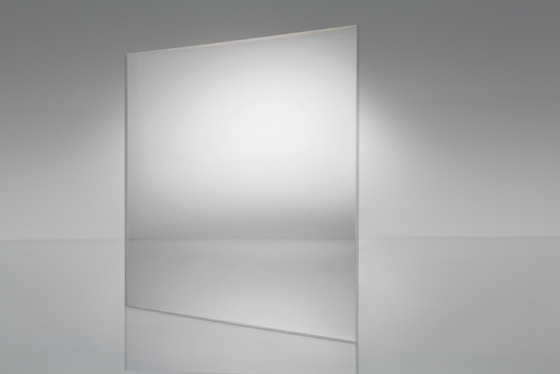

Eco friendly DIY frosted solid polycarbonate sheets / PC solid sheet for indoor partition 2100mm width
Embossed Polycarbonate Solid Sheet
Polycarbonate is a kind of thermalplastic engineering plastic which is featured in excellent performances, such as impact resistance, creep resistance, good dimensional stability, heat resistance, low water absorption, non-toxicity and excellent dielectric property, etc., being the only kind of product with good transparency in the five major engineering plastics, as well as the general engineering plastic whose productivity grows the most rapidly during the last few years.
As a result, it is highlighted as a transparent metal. Currently, it is widely applied in high-tech fields, such as cars, electronics, optical storages (base materials of discs), building materials of constructions, office equipment, packages, sports apparatus and medical care, etc
SPECIFICATION OF PC SOLID SHEETS:
| Thickness (mm) | Standard Width (mm) |
Density |
Standard Length (mm) | Standard Color |
| 2 |
|
|
|
Clear, |
| 2.5 | ||||
| 3 | ||||
| 4 | ||||
| 5 | ||||
| 6 | ||||
| 8 | ||||
| 10 | ||||
| 12 |
Technical data of PC solid sheet
| CHARACTERISTICS | DATA |
| Impact Strength | 850 J/m |
| Light Transmission | 89%-50% |
| UV Protection Layer | 50 um |
| Suitable temperature | -40 ~ +120 |
| Heat Deformation Temp. | 140 |
| Heat Conductivity | 2.3-2.9 W/m2 |
| Specific Heat | 1.17 KJ/KG k |
| Thermal Expansion Coefficient | 0.065 mm/m |
| Bend Strength | 100 N/mm2 |
| Tensile Strength | > 60 N/mm2 |
| Tensile Force of Breaking | > 65 N/mm2 |
| Modulus of Elasticity | 2400 MPa |
Effect of soundproof of pc compact sheets:
| Thickness (mm) | Soundproof Index (dB) |
| 4 | 27 |
| 5 | 28 |
| 6 | 29 |
| 8 | 31 |
| 10 | 32 |
| 12 | 34 |
Min. Bend Radius solid polycarbonate sheets:
| Thickness (mm) | Min. Bend Radius (mm) |
| 3 | 450 |
| 4 | 600 |
| 5 | 750 |
| 6 | 900 |
| 8 | 1200 |
Features of anti-scratch PC solid sheets:
Application of Polycarbonate Sheet
1) Roofing for greenhouse, swimming pool, shopping malls, commercial streets.
2) Sunshade for stadiums and bus stops, gazebo, open air carport.
3) Lighting canopy for corridors, passages and subway entries.
4) ATM machine covers, telephone booth, gateways, garages.
5) Sound and heat insulation wall for expressways and houses.
6) Instead of glass, decoration door, curtain wall.
7) Soundproof material for partitions.
8) Unbreakable material for glazing widows, roof glazing.
9) Lighting of modern villa, rain-proof lighting shed of underground garage entryway.
10) Front wind shields of motorcycles, airplanes, trains, liners, vehicles, motorboats, submarines and riot shields.
