Eco Friendly 5.95m Length PVC Wall Panels With Long Working Life 200 × 7mm

Product Summary
5.95m Length PVC Wall Panels With Long Working Life 200 × 7mm PVC Wall Panel Specification: Size 20cm * 7mm Length usuall be 5.8m or 5.95m Weight 1.9-2.3kg per sqm Package packed with PE film, and each 10pieces will be put into one pack Surface treatment printing PVC Wall Panel Benefits 1. Ideal ...
Basic Properties
Place of Origin: Zhejiang, China
Brand Name: OASIS, OEM
Certification: SGS, ISO9001
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 8000sqm per day
Product Description

5.95m Length PVC Wall Panels With Long Working Life 200 × 7mm



PVC Wall Panel Specification:





 Size



 20cm * 7mm



Length



 usuall be 5.8m or 5.95m



Weight



 1.9-2.3kg per sqm



Package



 packed with PE film, and each 10pieces will be put into one pack



Surface treatment



 printing



PVC Wall Panel Benefits



1. Ideal replacement for conventional ceiling and wall systems



2. Cost effective compared to other building materials



3. Resistant to most chemicals



4. High strength to different weight ratio



5. Lightweight, easy to transport



6. Maintenance is almost free – just wipe it clean



7. B1 level fire rating



PVC Wall Panel Parameter Data And Others:



 Parameters



 Moisture Rate



 ≤1%



 Noise reduction coefficient



 0.3-0.5



 Light reflectance



 0.75



 Fireproof Class



 Class B1 Meet the standard GB8624-1997
 Tolerance  Length <±1mm, width < ±1mm, thickness <±0.5mm



 Sagging resistance prosperities



 Warranty against visible sag



 Thermal conductivity



 Resistant to 95% humidity and standing water



 MOQ



 20GP container



 Percent of pvc



 40-60%



 Export Markets



 Global



 Application



 Ceiling of Office, Hotel, Household, Dust Free Room etc.



 Feature



 Environmental friendly, Artistic
 Function  Rotproof Moistureproof



 Note: color, design, and package could be supplied by customer’s requirement





PVC Wall Panel Installation:

1. Clean the surface of ceiling.



2. Nail wooden or steel battens(20mm - 30mm thick) into the wall and ceiling, with all the corners firstly, then on the plane with the distance of 400mm away between every wooden batten.



3. Screw PVC profiles(cornices) on all the corners, then insert the panel into the corner profiles, then the folling panel into the first panel.



4. Screw PVC second panel's notch side into the wooden or steel battens, then insert the third panel, then the fourth, and nail the fourth's notch side, then fifth and sixth, then...



5. Attention for the distance and notch side panel: for the ways above is based on 250mm or 300mm wide panels, and wooden or steel battens between distance is 400mm, so every 2 panel, screw the second notch. Surely you could change the ways as per your situation presently, by way of changing the distance of the panels and the wooden or stell battens.



How to Choose PVC Wall Panel:
A. Watching
The surface should be even and beautiful. Color and pattern should be in harmony with where to decoration. Panels with bright and single color and clean pattern are better for ceiling usage.

B. Checking the tongue and groove
The cut of panel looks like honey comb. It should be clear and sharp. Tongue and groove is on the two sides of nished panels. When install the tongue into the groove, no gap is allowed, and the surface should be even as one complete panel. If installing is not easy, the panels are surely of poor quality.

PVC Wall Panel Application:

PVC Panels for wall and ceiling is great for carport, garages, under eaves, bathrooms, living room, laundry room, kitchen and much more. PVC panels are perfect for areas with moisture issues. It is also great for areas where you just need to quickly spruce up, as you can fix the panel on any surface. You no longer need to remove old wall paper or old wall tiles to revitalize a room. You can now clad over the old ugly wall or ceiling with our PVC panels.

A lot of people are worried about the smell of PVC panel, in the fact if you choose regular factory of the PVC panel, it is non-toxic and tasteless, no stimulation to the skin and respiratory system, for those of timber and paint allergic people, PVC panel is very suitable to use in the home or public place.

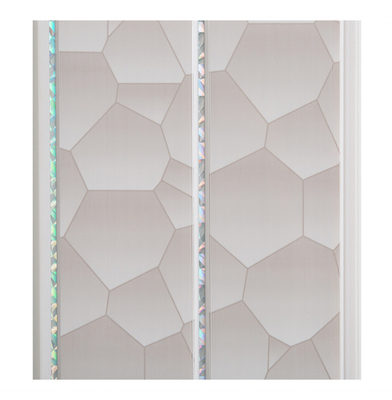

PVC Wall Panel Color Showing:



Eco Friendly 5.95m Length PVC Wall Panels With Long Working Life 200 × 7mm

Product Details
Highlight:

uv marble sheet

,

laminate wall panels

Product: 5.95m Length PVC Wall Panels With Long Working Life 200 × 7mm
Size: 200*7mm
Weight: 1.9-2.3kg/sqm
Length: 5.8m Or 5.95m
Surface: Normal Printing With Middle Groove Shape
Feature: Rotproof; Moistureproof
