Laminated Pvc Wood Ceiling Panels Anti Aging

Laminated Anti-aging PVC Wood Panels Size 20cm × 8mm To Costa Rica

PVC panel has various advantages over other materials, namely they are waterproof, termite proof, fire retardant, economical, maintenance free, being non-porous and non-absorbent, can incorporate flush fitted lighting, access hatches, air vents and sprinklers. PVC panels are also easy to instal and available in various colours, shades and patterns, they are hassle-free to paint over or polish.





Laminated Anti-aging PVC Wood Panels Introduction:



Product Type	PVC ceiling and wall panels
Raw Materials	PVC, Calcium Carbonate
Brand Name	Oasis or OEM
Specification	Size	200mm
	Thickness	8mm
	Length	5.95m, or according to your requirements
Surface treatment	Wooden lamination
Features	Functions		Fireproof, waterproof core, non-porous, environmental friendly
	Colors and patterns		Hundreds and thousands of laminated designs available
	Other advantage		1) High intensity,Resist erosion,good flexibility, anti-aging   2) Easy setting and cleaning   3) Easy to maintain   4) Economical cost
Application	Hotels, hospitals, schools, kitchens, washing rooms, office, and other indoor ceiling and wall decoration



Laminated Anti-aging PVC Wood Panels Installation Procedure:

(1) Preparing all the necessary tools



(2) Measuring the size of panel you need to cut



(3) Cutting the panel by blade or jigsaw



(4) Fixing the kill



(5) Install the corner or jointer



(6) Install the panel into the corner



(7) Fixing the panel by staple nail gun on the keel



(8) Insert the second panel completely into the groove before stapling (nailing or screwing) into the lip. Proceed the same way with the next panels.





Physical Properties Of Laminated Anti-aging PVC Wood Panels



Property	Test Method	Typical Value	Unit
Physical
Density	ISO 1183	0.72	g/cm²
Water Absorption (24 hrs at 73° F)		< 0.2	%
Weather Resistance		No visible change after 4,000 hours
Mechanical
Yield Stress	ISO 527	20	MPa
Elongation at Yield	ISO 527	2.5	%
Elongation at Break	ISO 527	20	%
Tensile modulus of elasticity	ISO 527	1300	MPa
Impact Strength (Charpy unnotched)	ISO 179	11	kJ/m²
Shore hardness (D)	ISO 868	53
Thermal
Temperature range		0 to +60 32 to+140	°C °F
Coefficient of linear thermal expansion		0.8 x 10^-4	K-¹
Thermal conductivity		0.087	W/mK
Electrical
Surface resistivity		>10^15	0hm
Others
Fire behavior		B1 flame retardant

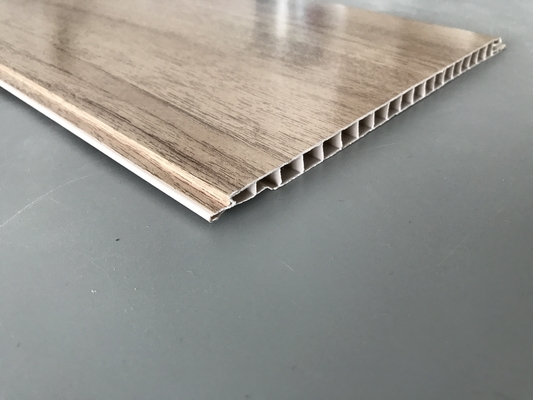

Laminated Anti-aging PVC Wood Panels Pictures:
