Product Details:
Payment & Shipping Terms:
|
| Product: | Fire-retardant And Waterproof Wall Panels Pink Marble Size 250 * 7mm | Width: | 25cm |
|---|---|---|---|
| Color: | Pink Marble | Surface: | Normal Printing |
| Feature: | Fire-retardant, Waterproof | Application: | Ceiling And Wall |
| Highlight: | plastic bathroom shower panels,waterproof wall board |
||

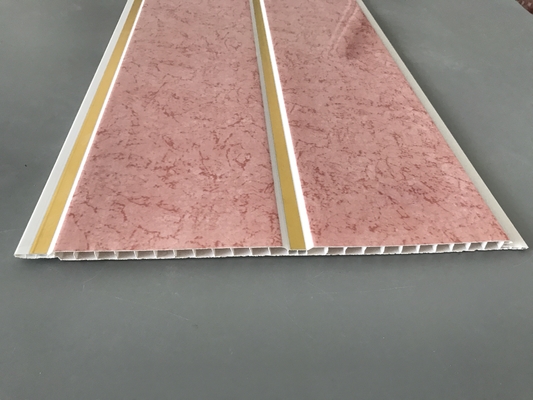

Fire-retardant And Waterproof Wall Panels Pink Marble Size 250 * 7mm
PVC Panel Introduction:
|
Product Type
|
PVC ceiling and wall panel |
|
Product Specification
|
Width*Thickness: 25cm (10inch)*7mm Length: 5.8m or 5.95m Weight: 2.5kg/sqm
|
|
Product Color
|
Printing type: pink marble |
|
Product Package
|
each bag has ten pieces of pvc panel |
|
Product Quality
|
can be bent into circle |
|
Product Material
|
PVC Resin & Calcium Carbonate |
PVC wall panels consists of pvc panels in various lengths and 200 mm, 250 mm, 300 mm wide that are attached to each other flush, creating a uniform and beautiful flat surface. These ceiling panels can cover an existing home or business premises ceiling for decorative or other purposes.
Waterproof Feature:
PVC panels are waterproof and do not expand, contract or warp when they come into contact with water.
Example: The car wash environment has a lot of soap, water, dirt, and chemicals. As discussed, not all materials perform well under these conditions. PVC does. Today’s manufacturers produce rigid hollow panels featuring tongue and groove designs. Fasteners are typically installed on a flange on the groove side of the panel. As the tongue of the next panel is inserted into the groove, the fastener is covered, creating a pleasant effect.
Frie-retarant Feature:
PVC panels do not burn. It has got a "B1" fire rating.
PVC Panel Fire Test Report:
|
Report No.
|
V03-1400168 | Specification | 250mm | ||||
|
Product
|
PVC Wall & ceiling Panel | Standard | BS EN 13501-1:2014 | ||||
|
Test Items
|
Measure Unit | Technical Requirement | Test Results | Individual Judgment | |||
|
Fire growth rate
|
W/s | C | ≤250 | 102 | Compliant | ||
|
Lateral flame spread
|
m | Yes | Compliant | ||||
|
Total heat release
|
MJ | ≤15 | 10.5 | Compliant | |||
|
Flame spread
|
Surface | mm | ≤150 | 30 | Compliant | ||
| Edge | 32 | Compliant | |||||
|
Smoke growth rate
|
m2/s2 | S2 | ≤180 | 172 | S3 Compliant |
||
|
Total smoke production
|
m2 | ≤200 | 166 | ||||
|
Flaming droplets/particles
|
------ | d0 | No flaming droplets/particles occur within 600s |
Yes | Compliant | ||
|
Ignition of the filter paper
|
------ | No ignition of the filter paper | Yes | Compliant | |||
|
Conclusion
|
The combustion performance of sample is Satisfied BS EN 13501-1:2014 about grade C-s3, d0. |
||||||
PVC Panel Showing:
