Customized Clear Solid Polycarbonate Sheet , Clear Flat Perspex Sheets
"unbreakable glass" 3mm thickness Makrolon polycarbonate solid sheets for skylight

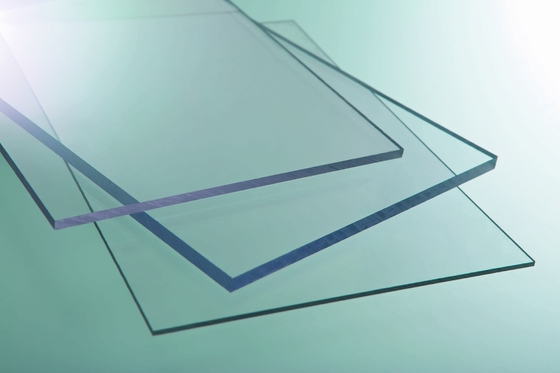

POLYCARBONATE SOLID SHEET
PC solid sheet is called “ unbreakable glass”, it is clear as glass, but the weight is less than half of glass, the impact strength is 300 times than glass. It could be cold bend, hot forming and further processing accordingly. So it is widely used in construction, engineering and decoration.
SPECIFICATION OF PC SOLID SHEETS:
| Thickness (mm) | Standard Width (mm) |
Density (Kg/m³) |
Standard Length (mm) | Standard Color |
| 1.5 |
1200-2100 |
1.2 |
As requested |
Clear, Frosted, Blue, Lake blue, Green, Brown, Opal, Red, Yellow
|
| 1.8 | ||||
| 2 | ||||
| 2.5 | ||||
| 3 | ||||
| 4 | ||||
| 5 | ||||
| 6 | ||||
| 8 | ||||
| 10 | ||||
| 12 |
Feature of solid polycarbonate sheets:
- Very high impact strength
- Excellent light transmission
- UV protection and Anti-aging
- Good weather resistance
- Light weight and simply installed
- Could be deep-processed, widely used.
- Soundproof well
- 100% /Bayer material
- 10 years warranty.
Technical data of PC solid sheet
| CHARACTERISTICS | DATA |
| Impact Strength | 850 J/m |
| Light Transmission | 89%-50% |
| UV Protection Layer | 50 um |
| Suitable temperature | -40 ~ +120 |
| Heat Deformation Temp. | 140 |
| Heat Conductivity | 2.3-2.9 W/m2 |
| Specific Heat | 1.17 KJ/KG k |
| Thermal Expansion Coefficient | 0.065 mm/m |
| Bend Strength | 100 N/mm2 |
| Tensile Strength | > 60 N/mm2 |
| Tensile Force of Breaking | > 65 N/mm2 |
| Modulus of Elasticity | 2400 MPa |
Effect of soundproof
| Thickness (mm) | Soundproof Index (dB) |
| 4 | 27 |
| 5 | 28 |
| 6 | 29 |
| 8 | 31 |
| 10 | 32 |
| 12 | 34 |
Min. Bend Radius
| Thickness (mm) | Min. Bend Radius (mm) |
| 3 | 450 |
| 4 | 600 |
| 5 | 750 |
| 6 | 900 |
| 8 | 1200 |
APPLICATION of polycarbonate solid sheets:
- Lighting
- Indoor windows and doors
- Riot windows and doors
- Display and Observe windows
- Showing box in shop and museum
- Advertising Panel
- Sound barrier
- Awning and Carport
- Indoor partition
- Police shield.

HAINING OASIS BUILDING MATERIAL CO.,LTD is an professional manufacturer and exporter of polycarbonate sheets. Established on 2011 and Located at Haining city which is between Shanghai airport and Hangzhou Airport.
We have 2 advanced producing line for polycarbonate hollow sheets and 1 producing line imported from Europe for polycarbonate solid sheets. Our factory always focus on quality control, scientific management and R&D, so that we can supply the high quality, competitive price and best service for our clients. That is why our products enjoy good markets in worldwide, such as Latin America, Middle east, Africa and south asisa.
On 2015, we established first branch company at Bogota,Colombia, loacated at Calle 68 #22-43.
On 2016, we set another warehouse in Colombia, the address is Carrera 22#14-60,Bogota.
On 2017, we plan to set more warehouse in another city of Colombia, Such as Cali,Baranquilla.
With “quality first, best credit, clients supreme”, welcome warmly you to inquiry and visit us
