Makrolon / Twin Wall Hollow Sheet , Flexible Polycarbonate Sheet
8mm thickness Makrolon / polycarbonate roofing sheets for Ecuador 10 years gurantee

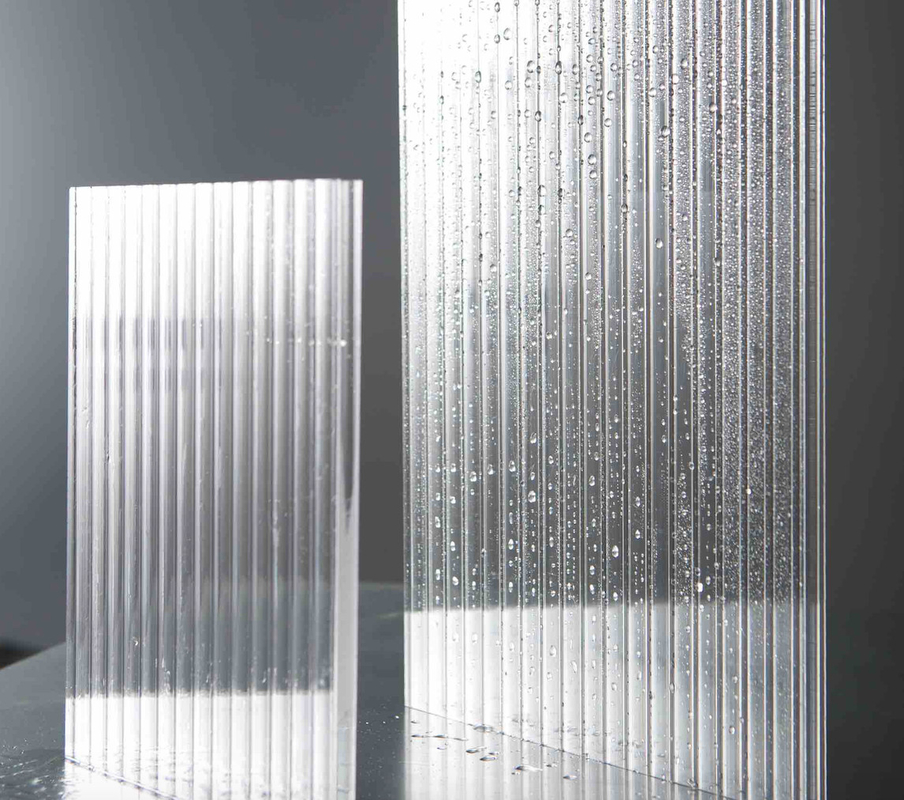

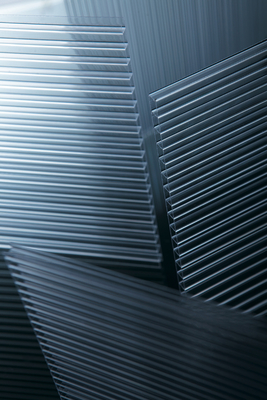

What is the POLYCARBONATE HOLLOW SHEET?
PC hollow sheet is a new kind of engineering plastic with excellent physical and chemical characteristics. Light weight but with high impact resistance, good heat insulation, nice light transmission etc. so it is widely used for construction and decoration.
INTRODUCTION OF POLYCARBONATE ROOFING SHEETS:
1, Standard size: Width 2100mm×Length 6000mm; size also could be ordered
2, 100% virgin /Bayer material.
3, ANTI-UV protection, 50um UV protecting layer
4, 10 years warranty.
5, Color: clear, blue, lake blue, green, grass green, brown, opal, red, yellow
SPECIFICATION OF POLYCARBONATE SHEETS:
| Thickness(mm) | Structure |
Weight (g/sqm) |
Min. Bend Radius (mm) |
K value (W/㎡K) |
| 4 |
2-layer |
850 | 700 | 4.1 |
| 5 | 1000 | 875 | 3.8 | |
| 6 | 1300 | 1050 | 3.6 | |
| 8 | 1500 | 1400 | 3.3 | |
| 10 | 1700 | 1750 | 3 | |
| 6 |
3-layer
|
1400 | 1050 | 3.4 |
| 8 | 1600 | 1400 | 3.2 | |
| 10 | 1800 | 1750 | 2.7 | |
| 12 | 2100 | 2100 | 2.6 | |
| 14 | 2400 | 2450 | 2.4 | |
| 16 | 2700 | 2800 | 2.3 |
Technical date multi wall polycarbonate sunshine sheets:
1, High impact strength: the shock strength is 300 times than glass, and 30 times than PMMA;
2, With 50um UV layer, Anti UV protection and Anti aging.
3, Good light transmission and high heat insulation
4, Fireproof, belong to B1 level fireproof material
5, Good weather resistance, suitable temperature is from - 40 ~120℃; soften temperature is at 148℃
6, Elastle stress: 2400 MPa; Tensile stress: 63%; Nominal tensile strain:>50%
APPLICATION OF PC SHEETS:

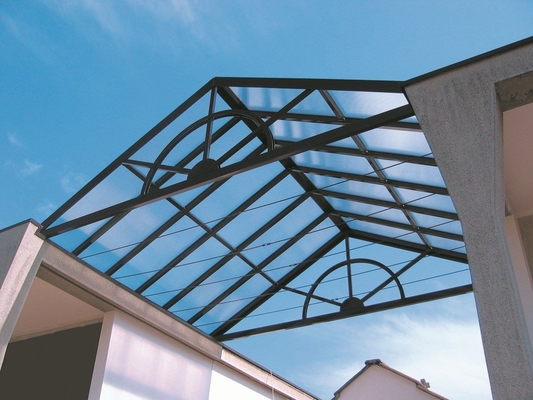

- Building skylights; such as gymnasium, workshop, storehouse etc.
- Agriculture greenhouse
- Natatorium coverings
- Walkway; Carport
- Indoor partition; Folding screen
- Furniture; Bathroom

STANDARD COLOR AND LIGHT TRANSMISSION
|
Thickness(mm) Color |
4 | 5 | 6 | 8 | 10 |
| Light transimission | |||||
| Clear | 80% | 78% | 76% | 74% | 72% |
| Lake Blue | 56% | 54% | 51% | 49% | 48% |
| Green | 55% | 52% | 51% | 48% | 46% |
| Grass green | 54% | 52% | 50% | 46% | 44% |
| Brown | 34% | 32% | 30% | 26% | 23% |
| Blue | 33% | 31% | 28% | 25% | 20% |
| Opal | 27% | 25% | 22% | 18% | 15% |
| Advertising white | 16% | 14% | 12% | 9% | 8% |
HAINING OASIS BUILDING MATERIAL CO.,LTD is an professional manufacturer and exporter of polycarbonae sheets. Established on 2011 and Located at Haining city which is between Shanghai airport and Hangzhou Airport.
We have 3 advanced producing line for polycarbonate sheets. Our factory always focus on quality control, scientific management and R&D, so that we can supply the high quality, competitive price and best service for our clients. That is why our products enjoy good markets in worldwide, such as Latin America, Middle east, Africa and south asisa.
On 2015, we established first branch company at Bogota,Colombia, loacated at Calle 68 #22-43.
On 2016, we set another warehouse in Colombia, the address is Carrera 22#14-60,Bogota.
On 2017, we plan to set more warehouse in another city of Colombia, Such as Cali,Baranquilla.
With “quality first, best credit, clients supreme”, welcome warmly you to inquiry and visit us
