Product Details:
Payment & Shipping Terms:
|
| Product: | PVC Wood Panels | Thickness: | 5mm |
|---|---|---|---|
| Weight: | 2.5kg/sqm-3kg/sqm | Printing: | Middle Groove Printing |
| Shape: | Flat; Slab | Feature: | Fire Retardant |
| Highlight: | pvc interior wall panels,wood grain wall panels |
||

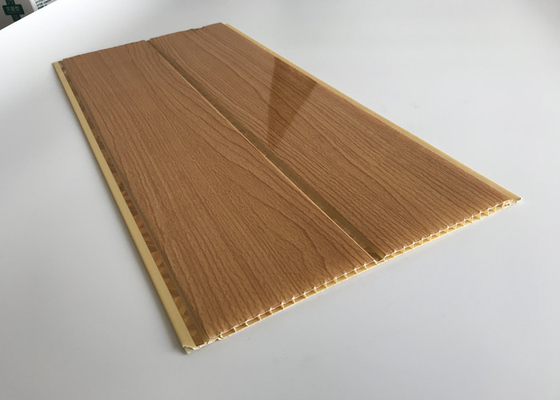

High Glossy Printing PVC Wood Panels For Hotel Lobby Ceiling Wall Cladding Decoration
PVC Wood Panels Introduction
PVC Wood Panels Advantages:
1. Fire retardant: Not easily burned, resistant to fire, not easily catch the fire
2. Waterproof-funtion: 100% waterproof pvc core, no wet trades required
3. Light and easy to fit
4. Heat insulation, thermal insulation
5. Aging-resistance: featuring high intensity, durable, working life could be 30 years
6. Wipe clean surface
7. Virtually maintenance free
PVC Wood Panels Installation:
1. Clean the surface of ceiling.
2. Nail wooden or steel battens(20mm - 30mm thick) into the wall and ceiling, with all the corners firstly, then on the plane with the distance of 400mm away between every wooden batten.
3. Screw PVC profiles(cornices) on all the corners, then insert the panel into the corner profiles, then the folling panel into the first panel.
4. Screw PVC second panel's notch side into the wooden or steel battens, then insert the third panel, then the fourth, and nail the fourth's notch side, then fifth and sixth, then...
5. Attention for the distance and notch side panel: for the ways above is based on 250mm or 300mm wide panels, and wooden or steel battens between distance is 400mm, so every 2 panel, screw the second notch. Surely you could change the ways as per your situation presently, by way of changing the distance of the panels and the wooden or stell battens.
PVC Wood Panels Quality Testing:
| No. | Test Items | Technical Requirements | Detection Result | Single Judge | |
| 1 | Appearance | Fulfill | Qualified | ||
| 2 | Flexibility mm/m | <1.5mm/m | 0.48 | Qualified | |
| 3 | Thickness mm | Faceplate | >0.4 | 0.4 | Qualified |
| Base plate | >0.3 | 0.32 | |||
| 4 | Heating Rate % | <6.0 | 0.6 | Qualified | |
| 5 | Heated State | No bubble, craze or spot | Fulfill | Qualified | |
| 6 | Resistance of acetone | No defects | Fulfill | Qualified | |
| 7 | Dart drop impact | 0.25kg/0.5m,10 times, Pass when keep unbroken above 6 times | pass | Qualified | |
| 8 | Size Variation in High/Low Temperature | ±0.6% | -0.16 | Qualified | |
| 9 | Nail resistance | no visible cracks | Indehiscent | Qualifie | |
PVC Wood Panels Color Showing:
