Product Details:
Payment & Shipping Terms:
|
| Name: | Polycarbonate Solid Sheet | Advantage: | Flame Retardant |
|---|---|---|---|
| Max Width: | 2.1m | Length: | As Requested |
| Guarantee: | 10 Years | Application: | Swimming Pool Commercial Streets |
| High Light: | impact resistant polycarbonate sheet,uv blocking polycarbonate sheet |
||

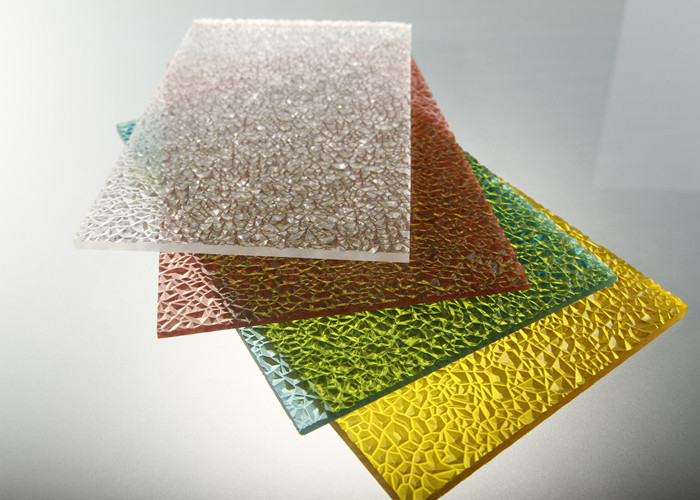

Flame Retardant Polycarbonate Solid Sheet For Swimming Pool Commercial Streets
Polycarbonate Solid Sheet Feature
1.Lasting Beautiful Color
Color stable.
2.Good Sound Insulation
Roof tile composite co- extrusion core layer shielding structure can greatly reduce sound transmission.
3.Heat Preservation And Heat Insulation
4.Excellent Anti-corrosive And Excellent Weather Resistance
PVC roof tile can long resist acid, alkali, salt and other corrosive chemicals. It suitable for using in corrosive workshop, acid rain-prone area and coastal area.
Polycarbonate Solid Sheet Introduction.
Polycarbonate is a transparent thermoplastic material with good strength and stiffness and outstanding impact resistance. It provides the best mechanical property and electrical insulation, high dimensional stability and excellent creep resistance. Polycarbonate's toughness and optical clarity make it ideal for a wide variety of applications. And it can be used in temperatures ranging from -130℃ to +130℃.
Polycarbonate Solid Sheet SPECIFICATION
| Thickness (mm) | Standard Width (mm) |
Density |
Standard Length (mm) | Standard Color |
| 2 |
|
|
|
Clear, |
| 2.5 | ||||
| 3 | ||||
| 4 | ||||
| 5 | ||||
| 6 | ||||
| 8 | ||||
| 10 | ||||
| 12 |
Polycarbonate Solid Sheet Technical data
| CHARACTERISTICS | DATA |
| Impact Strength | 850 J/m |
| Light Transmission | 89%-50% |
| UV Protection Layer | 50 um |
| Suitable temperature | -40 ~ +120 |
| Heat Deformation Temp. | 140 |
| Heat Conductivity | 2.3-2.9 W/m2 |
| Specific Heat | 1.17 KJ/KG k |
| Thermal Expansion Coefficient | 0.065 mm/m |
| Bend Strength | 100 N/mm2 |
| Tensile Strength | > 60 N/mm2 |
| Tensile Force of Breaking | > 65 N/mm2 |
| Modulus of Elasticity | 2400 MPa |
Effect of soundproof of pc compact sheets:
| Thickness (mm) | Soundproof Index (dB) |
| 4 | 27 |
| 5 | 28 |
| 6 | 29 |
| 8 | 31 |
| 10 | 32 |
| 12 | 34 |
Min. Bend Radius solid polycarbonate sheets:
| Thickness (mm) | Min. Bend Radius (mm) |
| 3 | 450 |
| 4 | 600 |
| 5 | 750 |
| 6 | 900 |
| 8 | 1200 |
Polycarbonate Solid Sheet Application
1) Roofing for greenhouse, swimming pool, shopping malls, commercial streets.
2) Sunshade for stadiums and bus stops, gazebo, open air carport.
3) Lighting canopy for corridors, passages and subway entries.
