Product Details:
Payment & Shipping Terms:
|
| Name: | Unbreakable Polycarbonate Panel | Type: | Engineering Plastic |
|---|---|---|---|
| Density: | 1.2g/cm³ | Color: | Multi Color |
| Standard Width: | 1200-2100mm | Advantage: | Durable |
| High Light: | uv blocking polycarbonate sheet,unbreakable polycarbonate panel |
||

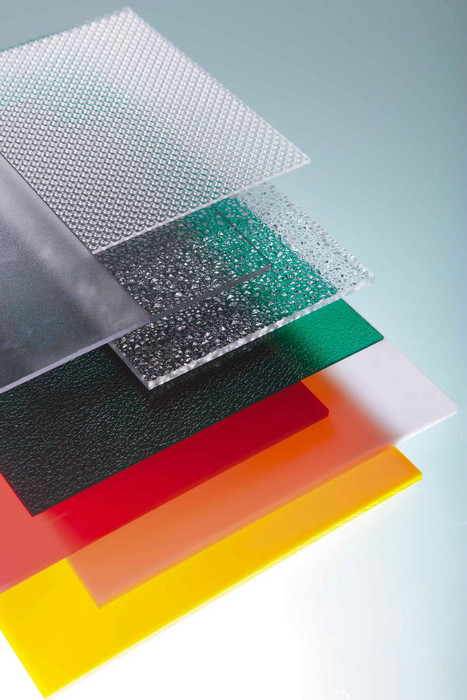

Multi Color Unbreakable Polycarbonate Panel / Durable Sheet
Unbreakable Polycarbonate Panel Application:
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium,school,amusement center,hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
Unbreakable Polycarbonate Panel Standard Dimensions
|
Thickness (mm)
|
Width×Length (mm) |
Min.Bend Radius (mm) |
Effect of the sound (db) |
Transmittance (%) |
|
1.5
|
1250 x Unlimited | 225 | 23 | 89 |
|
2
|
2100 x Unlimited | 300 | 24 | 88 |
|
2.5-6
|
375-900 | 25-29 | 87-83 | |
|
8
|
1200 | 31 | 82 | |
|
9-12
|
1350-1800 | 31.5-34 | 81-78 |
Technical Data
|
CHARACTERISTICS
|
DATA |
|
Impact Strength
|
850 J/m |
|
Light Tranmission
|
89%-50% |
|
UV Protection Layer
|
50 um |
|
Suitable Temperature
|
-40 ~ +120℃ |
|
Heat Deformation Temp.
|
140℃ |
|
Heat Conductivity
|
2.3-2.9 W/m2℃ |
|
Specific Heat
|
1.17 KJ/KG k |
|
Thermal Expansion Coefficient
|
0.065 mm/m℃ |
|
Bend Strength
|
100 N/mm2 |
|
Tensile Strength
|
>60 N/mm2 |
|
Tensile Force of Breaking
|
>65 N/mm2 |
|
Modulus of Elasticity
|
2400 MPa |
Polycarbonate Solid Sheet Application
1. Skylight
2. Roofing System
3. Balcony Screen
4. Sound Insulation Panel
5. Green House
6. Showroom
7. Signboard and Billboard
8. Car porch
