Building Skylight 4mm Polycarbonate Sheet / Unbreakable Polycarbonate Panel

China Building Skylight 4mm Polycarbonate Sheet / Unbreakable Polycarbonate Panel supplier

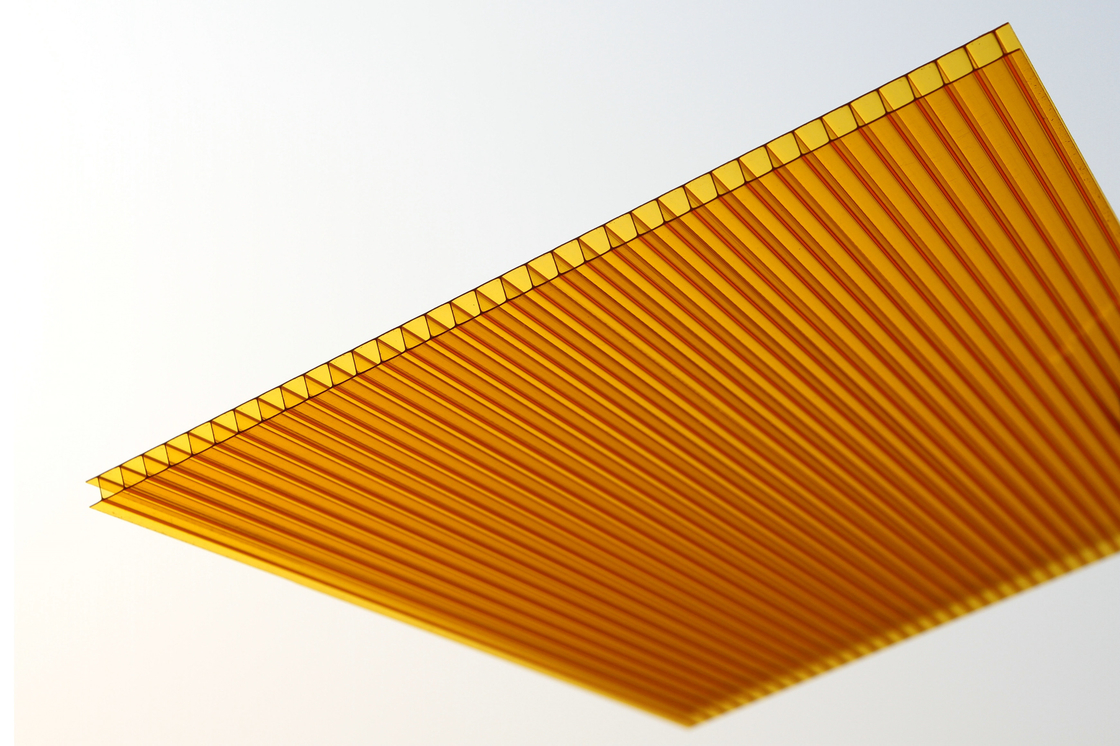

Large Image :  Building Skylight 4mm Polycarbonate Sheet / Unbreakable Polycarbonate Panel

Product Details:

Place of Origin: Zhejiang, China
Brand Name: OASIS or OEM
Certification: ISO9001
Model Number: 4mm Polycarbonate Sheet

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE film
Delivery Time: 15 days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 200000 Sqm/Month
Contact Now
Detailed Product Description
Product Name: 4mm Polycarbonate Sheet Thickness: 4mm
Color: Orange Surface: One Side With UV Layer
Feature: Unbreakable Application: Building Skylight

Building Skylight 4mm Polycarbonate Sheet / Unbreakable Polycarbonate Panel



4mm Polycarbonate Sheet Details



1. Standard size: Width 2100mm×Length 11800mm; size also could be ordered



2. Thickness: 4mm



3. Min. Bend Radius: 1050mm



4. K value: 3.6W/㎡K



4mm Polycarbonate Sheet Feature



(1). High light transmission: up to 88% that of same thickness of general glass.
(2). Excellent impact resistance: 250~300 times that of same thickness glass, 30 times that of acrylic sheeting.
(3). Weather and UV resistant properties retained for years.: Temperature resistance range is -40째C ~ 120째C, with an ultraviolet coextruded film on the sheet surface. It can prevent the resin fatigue or yellowing caused by the ultraviolet.
(4). Light weight: only 1/12 of the weight of glass of the same thickness. It can be easily cold bent as well as thermal shaping.
(5). Flame resistance: High fire performance rating is class B1.
(6). Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.



Polycarbonate Roofing Sheet Physical Data





soften temperature



148℃



suitable temperature



-40 ~120℃



Anti-fire rating



GB8624-1997, B1 level material



elastle stress



2400MPa(1mm/rain.ISO 527)



tensile stress



63MPa(at yeild 50mm/min.ISO 527)



tensile strain



6%(at yeild 50mm/min.ISO 527)



nominal tensile strain



>50%(at break 50mm/min.ISO 527)



Polycarbonate Roofing Sheet Packing

As with all glazing materials, care should be exercised when handling and transporting polycarbonate sheet in order to prevent scratches and damage to sheet edges. Each sheet is packaged as follows to minimise the risk of these problems:

* The top face is covered with printed masking

* The bottom face use opal film or neutral film

* The edges of the sheets have colored tape on them

* The sheet should be kept in their packaging until immediately prior to installation



4mm Polycarbonate Sheet Applications



Greenhouse

Food drying(traditional Chinese medicine, seafood, dried vegetables, etc)

Metal roof daylighting(with color plate supporting)
