| Name: | Polycarbonate Sheet | Color: | Clear |
|---|---|---|---|
| Structure: | Double Wall | Thickness: | 4mm -10mm |
| UV Layer: | One Side With 50 Micron UV Layer | Max Width: | 2.1 Meter |
| Highlight: | polycarbonate twin wall roofing sheets,double wall polycarbonate panels |
||

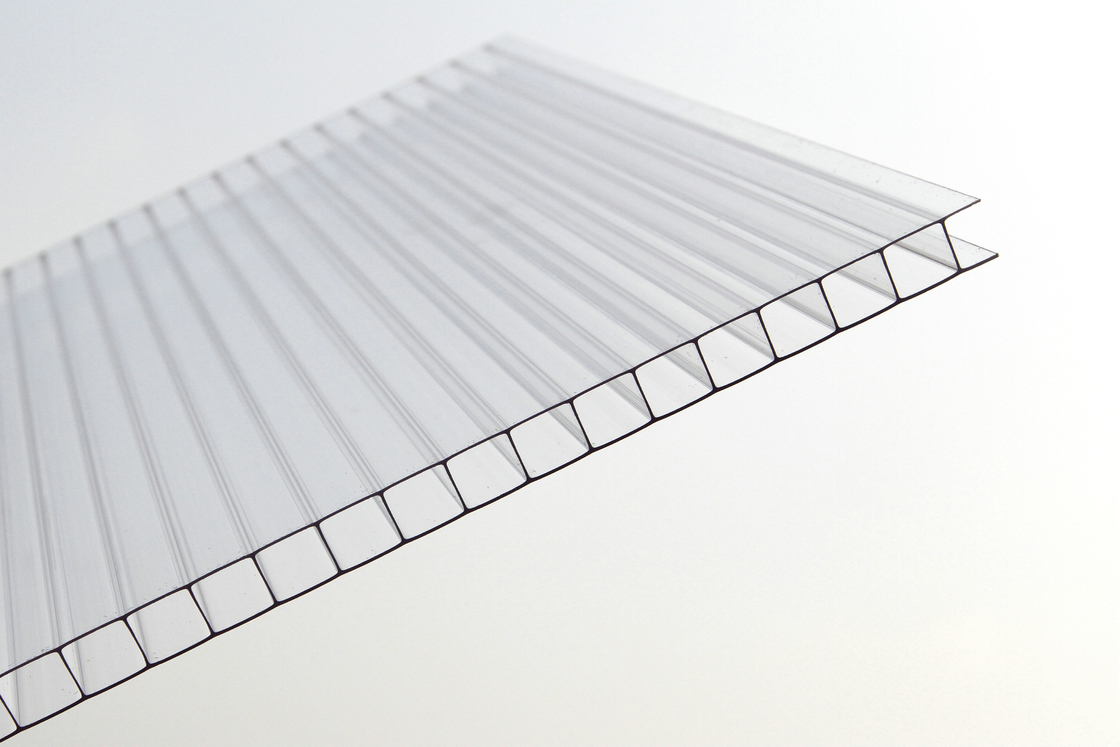

High Safety Polycarbonate Sheet , Clear Patio Cover Panels 4mm -10mm
Polycarbonate Sheet Features :
1) High light transmission
2) Light weight
3) High impact strength
4) UV protection
5) Saving energy
6) Sound insulation
7) Weather resistance
Polycarbonate Sheet MIAN INTRODUCTION:
1. Max Width: 2.1 meter
2. Max Length: 11.8 meter
3. Raw Material: / Bayer material
4. Anti-UV Protection: 50um UV layer in one side
| Thickness (mm) |
Step (mm) |
Weight (g/m2) |
K-value (W/m2 K) |
UV side | Standard size | Light transmission | |||
| Width (mm) | Length (mm) | Clear (%) | Lake Blue (%) | Bronze (%) | |||||
| 4 | 6 | 850 | 4.1 | 1 | 2100 | 5.8m; 5.95m; 11.8m | 80 | 56 | 34 |
| 5 | 6 | 1000 | 3.8 | 1 | 78 | 54 | 32 | ||
| 6 | 6 | 1300 | 3.6 | 1 | 76 | 51 | 30 | ||
| 8 | 10 | 1500 | 3.3 | 1 | 74 | 49 | 26 | ||
| 10 | 10 | 1700 | 3 | 1 | 72 | 48 | 23 | ||
Polycarbonate Sheet MAIN APPLICATION:
1. Skylights
2. Canopies
3. Domes
4. Plant/warehouse
5. Stadium roofing
6. Glazing
