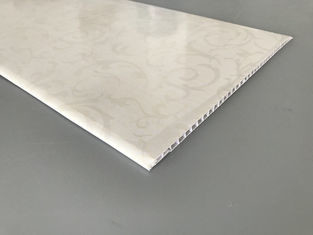

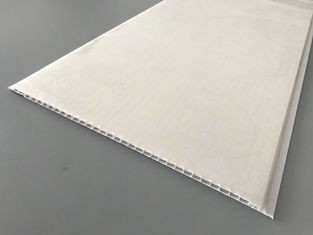

Moisture Resistant Decorative PVC Panels Bendable For Hall Ceiling And Wall
Moisture Resistant Decorative PVC Panels Bendable For Hall Ceiling And Wall
PVC Ceiling Panel Size Measurement:
Width: 25 cm
Thickness: 7mm
Weight: 2.3kg/sqm; 2.5kg/sqm
Length: 5.85 meters; 5.95m
(Also custom cuts)
OASIS Ceiling Has All the Advantages that the Best Ceiling Requires:
- Ultralight
- Long durability
- Moisture resistant
- Doesn't require painting
- Environmentally friendly
- Recyclable
- Do not spread the fire
- Waterproof.
- Repels insects (eg, termites)
- Resistant to fire (does not spread flames).
- Ease of installation
- Ease of cleaning
- The tablet can be painted to your liking and preference
PVC Ceiling Panel Loading Quantity:
| SPECIFICATION | QUANTITY (package) | ||
| width | thickness | 20GP | 40HQ |
|
25cm
|
7mm | 255 | 610 |
| 7.5mm | 240 | 565 | |
| 8.0mm | 225 | 530 | |
| 9.0mm | 200 | 470 | |
|
20cm
|
6.0mm | 366 | 870 |
| 7.0mm | 315 | 745 | |
| 7.5mm | 292 | 700 | |
| 8mm | 275 | 650 | |
| 8.5mm | 260 | 615 | |
| 30cm | 6.0mm | 251 | 595 |
| 7.0mm | 215 | 510 | |
| 7.5mm | 201 | 476 | |
| 40cm | 6mm | 240 | 280 |
| 9mm | 160 | 280 | |
| 60cm | 7mm | 550 |
1280 |
PVC Ceiling Panel Fire Test Report:
|
Report No.
|
V03-1400167 | Specification | 250mm | ||||
|
Product
|
PVC Wall & ceiling Panel | Standard | BS EN 13501-1:2014 | ||||
|
Test Items
|
Measure Unit | Technical Requirement | Test Results | Individual Judgment | |||
|
Fire growth rate
|
W/s | C | ≤250 | 102 | Compliant | ||
|
Lateral flame spread
|
m | Yes | Compliant | ||||
|
Total heat release
|
MJ | ≤15 | 10.5 | Compliant | |||
|
Flame spread
|
Surface | mm | ≤150 | 30 | Compliant | ||
| Edge | 32 | Compliant | |||||
|
Smoke growth rate
|
m2/s2 | S2 | ≤180 | 172 | S3 Compliant |
||
|
Total smoke production
|
m2 | ≤200 | 166 | ||||
|
Flaming droplets/particles
|
------ | d0 | No flaming droplets/particles occur within 600s |
Yes | Compliant | ||
|
Ignition of the filter paper
|
------ | No ignition of the filter paper | Yes | Compliant | |||
|
Conclusion
|
The combustion performance of sample is Satisfied BS EN 13501-1:2014 about grade C-s3, d0. |
||||||
PVC Ceiling Panel Showing:

decorative wall cladding panels
,decorative tile panels
-
