Product Details:
Payment & Shipping Terms:
|
| Name: | Double Middle Groove 25cm Decorative PVC Panels With Wooden Printing | Material: | PVC Resin, Calcium Carbonate |
|---|---|---|---|
| Dimension: | 250*7mm | Shape: | Two Middle Groove |
| Weight: | 2.5kg/m2 | Surface: | Silver Lines |
| High Light: | decorative tile panels,pvc marble wall panels |
||

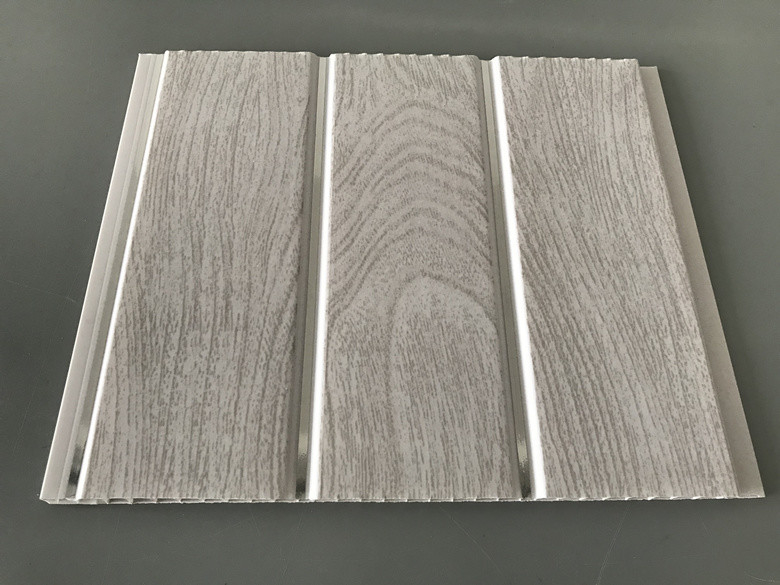

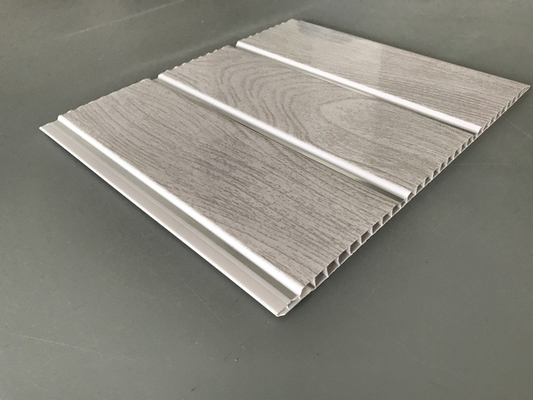

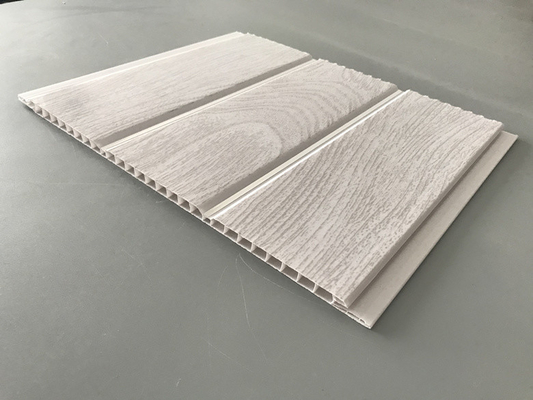

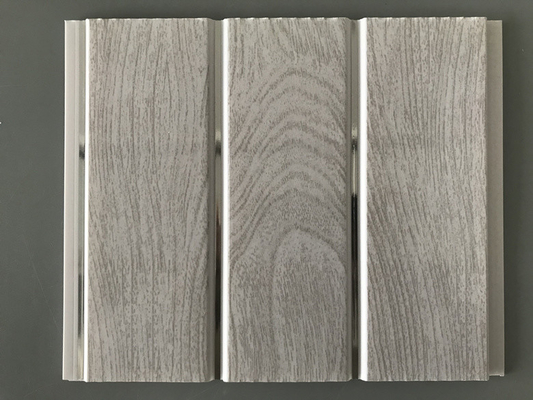

Double Middle Groove 25cm Decorative PVC Panels With Wooden Printing
PVC Ceiling Panel:
PVC ceiling panel is completely manufactured in China, with high quality standards, therefore with full guarantee on its application and functionality, as well as in a very responsible manner with the environment. One of its main reasons is the high concentration of PVC it contains. The entire manufacturing process is carried out in the country, from its raw material to the final finish of the product: molds, printing, cutting and packing.
PVC Ceiling Panel Size Measurement:
Width: 25 cm
Length: 5.85 meters; 5.95m
(Also custom cuts)
OASIS Ceiling Has All the Advantages that the Best Ceiling Requires:
-Ultralight
-Long durability
-Moisture resistant
-Doesn't require painting
-Environmentally friendly
-Recyclable
-Do not spread the fire
-Waterproof.
-Repels insects (eg, termites)
-Resistant to fire (does not spread flames).
-Ease of installation
-Ease of cleaning
-The tablet can be painted to your liking and preference
PVC Ceiling Panel Loading Quantity:
| SPECIFICATION | QUANTITY (package) | ||
| width | thickness | 20GP | 40HQ |
|
25cm
|
7mm | 255 | 610 |
| 7.5mm | 240 | 565 | |
| 8.0mm | 225 | 530 | |
| 9.0mm | 200 | 470 | |
|
20cm
|
6.0mm | 366 | 870 |
| 7.0mm | 315 | 745 | |
| 7.5mm | 292 | 700 | |
| 8mm | 275 | 650 | |
| 8.5mm | 260 | 615 | |
| 30cm | 6.0mm | 251 | 595 |
| 7.0mm | 215 | 510 | |
| 7.5mm | 201 | 476 | |
| 40cm | 6mm | 240 | 280 |
| 9mm | 160 | 280 | |
| 60cm | 7mm | 550 |
1280 |
PVC Ceiling Panel Fire Test Report:
|
Report No.
|
V03-1400167 | Specification | 250mm | ||||
|
Product
|
PVC Wall & ceiling Panel | Standard | BS EN 13501-1:2014 | ||||
|
Test Items
|
Measure Unit | Technical Requirement | Test Results | Individual Judgment | |||
|
Fire growth rate
|
W/s | C | ≤250 | 102 | Compliant | ||
|
Lateral flame spread
|
m | Yes | Compliant | ||||
|
Total heat release
|
MJ | ≤15 | 10.5 | Compliant | |||
|
Flame spread
|
Surface | mm | ≤150 | 30 | Compliant | ||
| Edge | 32 | Compliant | |||||
|
Smoke growth rate
|
m2/s2 | S2 | ≤180 | 172 | S3 Compliant |
||
|
Total smoke production
|
m2 | ≤200 | 166 | ||||
|
Flaming droplets/particles
|
------ | d0 | No flaming droplets/particles occur within 600s |
Yes | Compliant | ||
|
Ignition of the filter paper
|
------ | No ignition of the filter paper | Yes | Compliant | |||
|
Conclusion
|
The combustion performance of sample is Satisfied BS EN 13501-1:2014 about grade C-s3, d0. |
||||||
PVC Ceiling Panel Showing:
