Payment & Shipping Terms:
|Length:||5.95m Or As Requested||Width:||20cm / 25cm / 30cm|
|Thickness:||7mm / 7.5mm / 8mm / 9.5mm||PVC Content:||40% ~ 60%|
|Surface:||Glossy Printing||Color:||Grey Woodgrain|

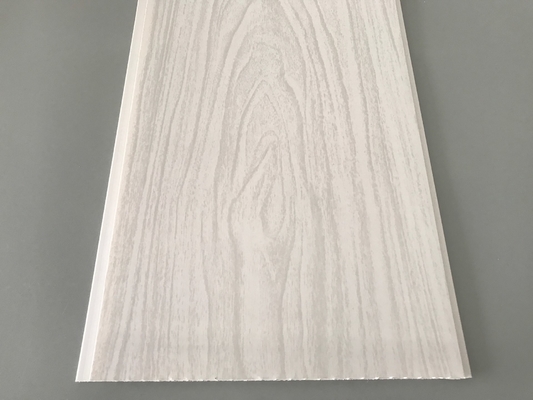

pvc interior wall panels,
wood grain wall panels
2.5 KGS grey wood color pvc ceiling panel 10 inches / cost effective interior decorative building material
El cielo raso en pvc es novedoso sistema de construcción liviana para cielo rasos y muros, su sistema de ensamblaje siempre brinda elegancia y diversos acabados.
ADVANTAGE OF DECORATIVE GREY WOOD COLOR PVC PANELS:
1, Light weight, easy to install and clean
2, waterproof, fireproof, anti-bacteria.
3, Very durable, it could be used for 30 years
4, No paint, No maintance, evironment friendly.
5, Lots of different color design for choice
6, The cost is very cheaper.
|Product||Flat wooden design glossy printing pvc panels, size 25cm*7.5mm|
|PVC ratio||40%-70% pvc virgin resin|
|Size||25cm*9mm, 25cm*7mm, 25cm*7.5mm, 25cm*8mm, 25cm*6mm|
|Length||2.9m, 5.8m, 5.95m or be requested|
|Surface treatment||glossy printing with popular wood grain design|
Applications of wooden grain pvc panels:
Kitchen and bathroom
Warehouse and storage
Restaurant and hotel
Office and hospital
Church and shops
ASSEMBLY INSTRUCTIONS OF PVC CEILING AND WALL PANEL - read BEFORE installation
Decorative PVC panels can be fixed directly to the wall if the surface is relatively even and if the wall is dry, using shower panel adhesive, or fix on to a frame of wooden batons.
When fitting decorative PVC panels to the ceiling, always fix to a frame of wooden batons.
When fixing decorative PVC panels to wooden batons, the panels can be fixed through the extending backplate fixing tongue using staples with a staple gun, by hammer with panel pins / nails, with screws, or with panel adhesive.
When fixing to the ceiling, adhesive should not be used, unless as an additional fixing combined with
To make a wooden frame, strap the wall with wooden battens placed approximately every 30-40cm according to the direction of assembly. If panels are assembled vertically, strap in the opposite direction horizontally, and vice-versa. If panels are assembled diagonally, the batons can be installed vertically, horizontally, or at right angles to the panels.
Start with the preferred end moulding – end cap U, internal, external, or scotia. Insert the tongue side of the panel into the moulding.
Glue the panel, or panel-pin (nail), staple or screw the first panel through the backplate fixing tongue opposite the starting side.
Insert the tongue of the next panel into the groove and continue the installation of the panels in the same manner.
Use appropriate PVC mouldings to finish all corners and ends.
Loading quantity of our pvc panels:
Shipment of pvc ceiling panels:
Contact Person: Miss. Abby
