Product Details:
Payment & Shipping Terms:
|
| Thickness: | 2mm, 2.3mm, 2.5mm | Width: | 1070mm |
|---|---|---|---|
| Effective Width: | 1000mm | Length: | 11.8m, 5.9m, Customized |
| Number Of Wave: | 5 Pieces | Material: | PVC Resin, Calcium Carbonate, And Other Subsidiary Materials |
| Color: | White | Application: | Warehouse, Factory, Commercial Center, House, |
| Surface: | Glossy | Weight: | 4.2-5.2KGS/square Meter |
| Life Time: | 15-20 Years | Structure: | 3 Layer |
| Shape: | Corrugated |
UPVC ROOFING SHEET, TEJAS DE UPVC

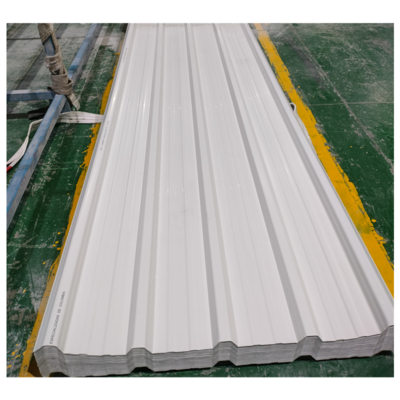

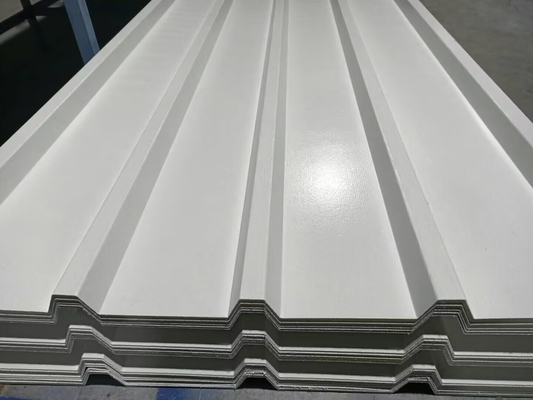

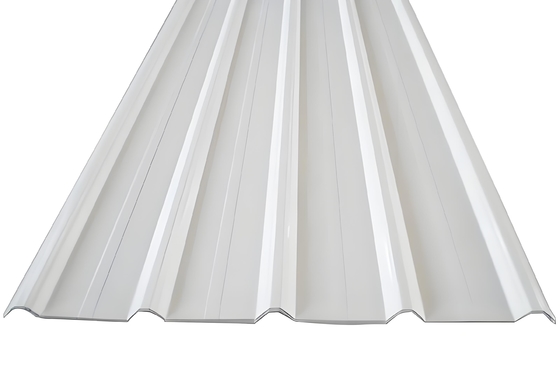

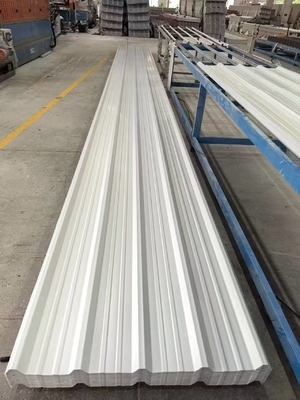

T1070 White color UPVC roofing sheet, PVC plastic roof sheet is one of the most popular styles all over the world. The width is 1070 mm, the length could be customized. It is suitable for most buildings, it can save the cost of cooling and makes the building tidy and lofty.
T1070 PVC roofing sheets:
| Descreption: | Picture of structure | |
| Width | 1070mm |  |
| Effective width | 1000mm | |
| Thickness | 2mm, 2.3mm, 2.5mm | |
| Length | Customized | |
| Height of wave | 37mm | |
| Number of wave | 5pieces | |
| Vertical overlap | 1 wave (75mm) | |
| Horizontal overlap | 0.2 -0.3m | |
| Componsition | 54% PVC, 44% calcium carbonate, 2% pvc stabilizer and others. | |
| Quality warranty | 15 years. | |
Advantage of UPVC Roofing sheet,
1.Heat insulation: The temperature difference indoor and outdoor could reach 8 to 10ºC. ASA PVC is 4 layers of PVC, this is good for heat insulation.
2.Fire proof: PVC roof sheet is a kind of safe building material, it has passed the building fire protection grade.
3.Color stable: Our roofing sheet has the anti-UV subsidiary material, it will not yellow-changing within 15 years.
4.Water proof: Water cannot pass through the pvc roof sheet.
5.Anti-corrosive: PVC roof sheet is highly resistant against chemical corrosion of acid, alkali, etc.
6.Anti-impact: PVC roof sheet has excellent load bearing performance and could withstand 150kgs. People could stand on the roof after installation.
7.Sound proof: PVC roof sheet has much less noise than other roof materials for example when it rains. lt can make noise 30db less than steel roof.
Technical Data of UPVC roof sheet:
| Test item | Test standard | Test condition | Test result | |
|
Xenon-arc Exposure |
ISO4892-2:2013,ISO 105-A02:1993 and ASTM D2244-11 |
ISO4892-2:2013 cycle 4 irradiance:(0.51+- 0.02)W/(m2.nm)@340nm 102min light at (63+-3)℃ BPTT,(50+-10)10% RH 18min light and water spray Filter:Boro/Boro Expousre period:500h |
Grey scale (see note 1) | (2-3) |
|
ΔE*ab (see note 2) |
3.5 | |||
| Thermal resistance | With reference to ASTM D3045-92(2010) |
150℃,30 min |
0.0345 |
|
| Muriatic acid resistance |
With referenceto ISO 175-2010 and client's requirements |
Medium:35%(m/m) HCI(AR) Method:Immersion method Temperature:Room temperature Test time :40h |
No visible change |
|
|
Hydrochloric acid resistance |
With referenceto ISO 175-2010 and client's requirements |
Medium:30%(m/m) H2SQ4(AR) Method:Immersion method Temperature:Room temperature Test time :48h |
No visible change |
|
|
Alkali resistance |
With referenceto ISO 175-2010 and client's requirements |
Medium:30%(m/m) NaOH(AR) Method:Immersion method Temperature:Room temperature Test time :48h |
No visible change |
|
| Density |
ISO 1183-1:2012 Method A |
Absolute alcohol 23+-0.5℃ | 1.799g/cm3 | |
| Flexural strength |
ISO 178:2010/amd 1:2013 Method A |
Specimen:100*1130*2.05mm Testing speed :1mm/min Span:50mm |
41.3MPa | |
| Flexural modulus | 4520MPa | |||
| Charpy unnoteched impact strength | ISO 179-1 :2010 |
Specimen:ISO 179-1/1eU Specimen thickness:2.05mm The capacity of the pendulum:5J Impact speed:2.9m/s Span:62mm |
38KJ/m2 C(complete break) |
|
| Vicat softening temperature |
ISO 306:2004 Method B50 |
Specimen thickness:2.05mm Rate of temperature:50℃/h Load:50N |
77.3℃ | |
| Tensile strength |
ISO 527-12012 and ISO 527-2:2012 |
specimen: Type 1B Specimen thickness: 2.05mm Testing speed:5mm/min Grip separation:115mm |
20.3MPa | |
| Nominal tensile strain at break | 13% | |||
|
Impact resistance |
GB/T 8814-2004 Section 5.7 and 6.7 |
Precondition:-10℃ 1h, take out and test 10s,Geo:H.25 Strick weight :1kg Span: 200mm, Number of tested: 10
|
Numbers of breakage:0 |
|
| Dimensional change | ASTM D1204-08 |
Condition:100℃,60min,then 23℃, 50%RH,1h,Specimen:25*25cm,Madium:Talcum powar |
X direction: -0.7% | |
| Y direction: -1.3% | ||||
| Acoustic isolation | ISO 140-3:1995 | Unit:DB | 13 | |
| High temperature resistance | ASTM D648-07 | Condition:60℃,6hours | No visible change | |
| Low temperature resistance | ASTM D648-07 | Condition:-20℃,6hours | No visible change | |
|
Radius of Curvature |
JG/T 346-2011 | Unit:m | 12 | |
| Thermal Conductivity | ASTM C518-04 |
Unit:W/(m.k) |
0.089 | |
| Fire resistance | DIN4102-1:1998-05 |
GRADE |
B1 | |

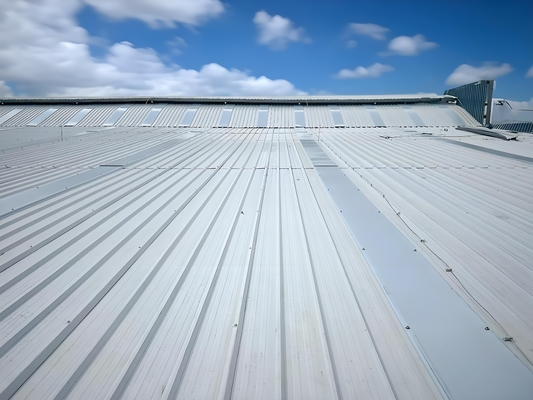

Application of T1070 high cresta UPVC roof sheet: Roofing and Wall for Factory, warehouse and farm etc.
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
PVC Roofing Tile, UPVC Roofing Tile, Synthetic Resin Roof Tile, APVC Roofing Tile, ASA Roofing Tile, Polycarbonate Sheet, Wall Panels
3. why choose us not from other suppliers?
we are a professional manufacturer of plastic sheet.
Our products are full, we are focusing on roofing solution and Indoor docorative material, like upvc roof sheet, ASA roof sheet and Polycarbonate roof sheet, pvc ceiling panel, deocorative roofing panel, epoxy colored sand floor.
we have 20 years experience for our researching, producing and exporting.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish.
Welcome to your inquiry and visiting!!!
