Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polycarbonate Roofing Sheets | Size: | 6mm * 2.1 * 11.8m |
|---|---|---|---|
| Color: | Black | Feature: | Lightweight |
| Structure: | Twin Wall | Raw Material: | / Makrolon |
| High Light: | polycarbonate twin wall roofing sheets,uv roof sheeting |
||

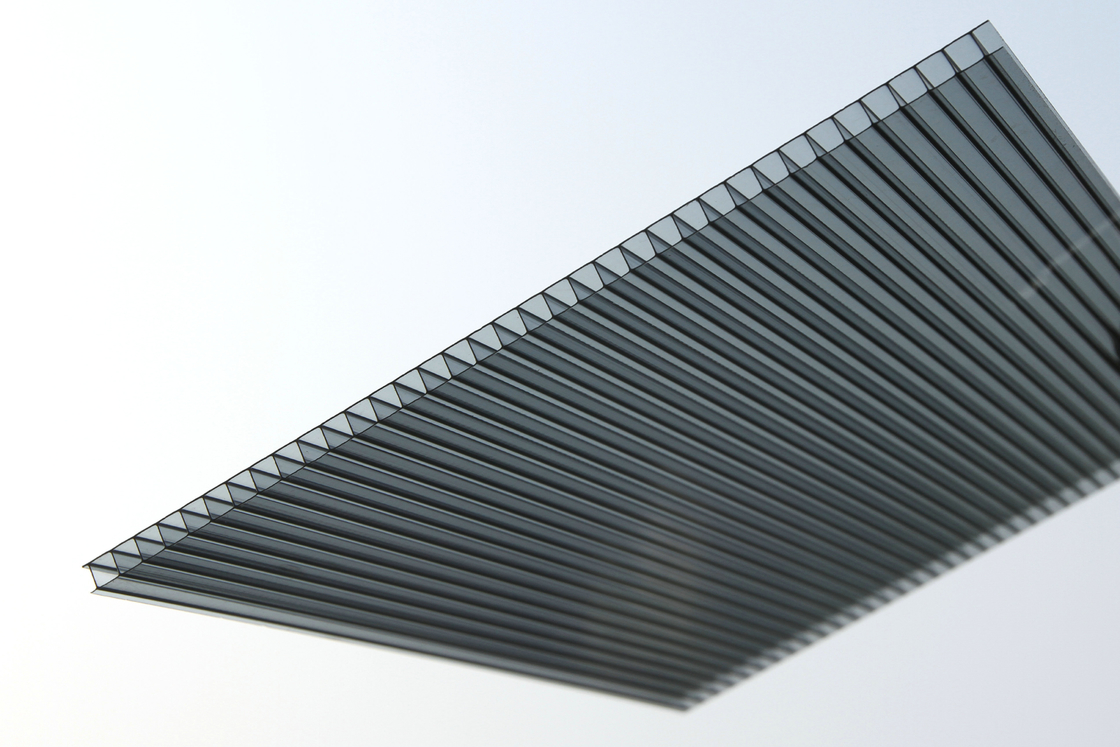

Lightweight Polycarbonate Roofing Sheets With / Makrolon Material
Polycarbonate Roofing Sheets Introduction
Polycarbonate Roofing Sheets provides outstanding flexibility in design and advanced heat reflecting and light transmitting performance. One side of the sheet has a co-extruded UV barrier which provides protection from 99.9% of harmful UV radiation, giving superior resistance to outdoor weathering. The flat appearance of the sheet means it is aesthetically pleasing.
Polycarbonate Roofing Sheets Features
Light weight: only 1/2 of the glass of the same thickness.
High light transmission: up to 88%
Anti-ultraviolet: 50 micron UV protection both sides, or one side.
High impact strength and tensile strength
Fire and heat proof
Soundproof boards of high way
Polycarbonate Roofing Sheets Application
Bus stop shelter, Building material, Greenhouse, Car garage tents,
Advertising boards, Light boxes, Transportation airline, Swimming pool Cover, Police shield,etc.
Polycarbonate Roofing Sheets Specification
| Thickness(mm) | Structure |
Weight (g/sqm) |
Min. Bend Radius (mm) |
K value (W/㎡K) |
| 4 |
2-layer |
850 | 700 | 4.1 |
| 5 | 1000 | 875 | 3.8 | |
| 6 | 1300 | 1050 | 3.6 | |
| 8 | 1500 | 1400 | 3.3 | |
| 10 | 1700 | 1750 | 3 | |
| 6 |
3-layer
|
1400 | 1050 | 3.4 |
| 8 | 1600 | 1400 | 3.2 | |
| 10 | 1800 | 1750 | 2.7 | |
| 12 | 2100 | 2100 | 2.6 | |
| 14 | 2400 | 2450 | 2.4 | |
| 16 | 2700 | 2800 | 2.3 |
Polycarbonate Roofing Sheets Light tramission:
|
Thickness(mm)
Color |
4 | 5 | 6 | 8 | 10 |
| Light transimission | |||||
|
Clear
|
80% | 78% | 76% | 74% | 72% |
|
Lake Blue
|
56% | 54% | 51% | 49% | 48% |
|
Green
|
55% | 52% | 51% | 48% | 46% |
|
Grass green
|
54% | 52% | 50% | 46% | 44% |
|
Brown
|
34% | 32% | 30% | 26% | 23% |
|
Blue
|
33% | 31% | 28% | 25% | 20% |
|
Opal
|
27% | 25% | 22% | 18% | 15% |
|
Advertising white
|
16% | 14% | 12% | 9% | 8% |
Polycarbonate Roofing Sheet Storage
1. Polycarbonate sheet shoube be stored and protected against atmospheric influence like sun, rain, etc.
2. Same length of polycarbonate sheet should be stacked together horizontally or, if different lengths, graded with the longest sheet at the bottom of the stack in order to avoid unsupported overhangs.
3. The stacks should be supported om timber bearers and should not be placed where they can be walked on or driven into.
