Product Details:
Payment & Shipping Terms:
|
| Name: | 10 Years Guarantee Polycarbonate Solid Sheet As Sound Barrier | Material: | , Bayer |
|---|---|---|---|
| Density: | 1.2g/cm³ | Thickness: | 1.5-12mm |
| Max Width: | 2.1m | Suitable Temperature: | -40 ~ +120 ℃ |
| Light Transmission: | 89%-50% | Function: | Lighting, Sound Barrier, Awning, Carport, Indoor Partition, Police Shield |
| Highlight: | uv blocking polycarbonate sheet,unbreakable polycarbonate panel |
||

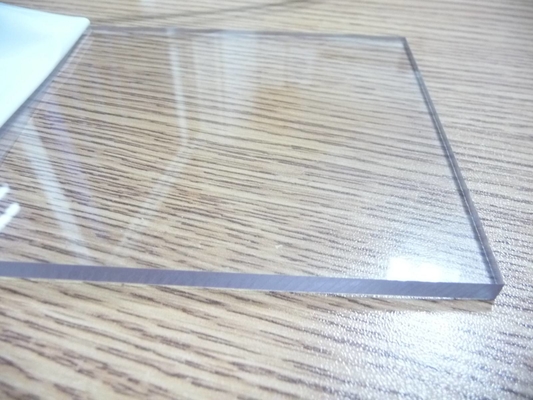

10 Years Guarantee Polycarbonate Solid Sheet as Sound Barrier
Introduction of Polycarbonate Solid Sheet
Polycarbonate solid sheet is called “ unbreakable glass”, it is clear as glass, but the weight is less than half of glass, the impact strength is 300 times than glass. It could be cold bend, hot forming and further processing accordingly. So it is widely used in construction, engineering and decoration. The following part is the feature of polycarbonate solid sheet:
1. Very high impact strength
2. Excellent light transmission
3. UV protection and Anti-aging
4. Good weather resistance
5. Light weight and simply installed
6. Could be deep-processed, widely used
7. Soundproof well
8. 100% /Bayer material
9. 10 years warranty.
Specification of Polycarbonate Solid Sheet
| Thickness (mm) | Standard Width (mm) |
Density(Kg/m³) |
Standard Length (mm) | Standard Color |
| 1.5 |
1200-2100 |
1.2 |
As requested |
Clear, Frosted, Blue, Lake blue, Green, Brown, Opal, Red, Yellow
|
| 1.8 | ||||
| 2 | ||||
| 2.5 | ||||
| 3 | ||||
| 4 | ||||
| 5 | ||||
| 6 | ||||
| 8 | ||||
| 10 | ||||
| 12 |
Technical Data of Polycarbonate Solid Sheet
|
CHARACTERISTICS
|
DATA |
|
Impact Strength
|
850 J/m |
|
Light Transmission
|
89%-50% |
|
UV Protection Layer
|
50 um |
|
Suitable temperature
|
-40 ~ +120 ℃ |
|
Heat Deformation Temp
|
140 ℃ |
|
Heat Conductivity
|
2.3-2.9 W/m2℃ |
|
Specific Heat
|
1.17 KJ/KG k |
|
Thermal Expansion Coefficient
|
0.065 mm/m℃ |
|
Bend Strength
|
100 N/mm2 |
|
Tensile Strength
|
> 60 N/mm2 |
|
Tensile Force of Breaking
|
> 65 N/mm2 |
|
Modulus of Elasticity
|
2400 MPa |
Soundproof Effect of Polycarbonate Solid Sheet
| Thickness (mm) | Soundproof Index (dB) |
| 4 | 27 |
| 5 | 28 |
| 6 | 29 |
| 8 | 31 |
| 10 | 32 |
| 12 | 34 |
Min. Bend Radius of Polycarbonate Solid Sheet
| Thickness (mm) | Min. Bend Radius (mm) |
| 3 | 450 |
| 4 | 600 |
| 5 | 750 |
| 6 | 900 |
| 8 | 1200 |
Application of Polycarbonate Solid Sheet
1. Lighting
2. Indoor windows and doors
3. Riot windows and doors
4. Display and Observe windows
5. Showing box in shop and museum
6. Advertising Panel
7. Sound barrier
8. Awning and Carport
9. Indoor partition
10. Police shield
Competitive Advantage of Polycarbonate Solid Sheet
1. two producing lines imported from Europe
2. the producing capacity is more than 200000 Sqm/Month
3. On 2015, we established an branch company in Colombia
