Rotproof Moisture Proof Wall Panels , Modern Wood Wall Panels Living Room
5mm Thickness Groove PVC Wall Panels For Rotproof Moistureproof Decoration
PVC Wall Panel Specification:
|
Finish
|
Size | Weight | Thickness | Packaging |
|
Printing
|
200mm | 1.6-1.8kg per sqm |
5mm |
each 10pieces will be put into one bag |
PVC Wall Panel Features:
1. Fireproof: Not easily catch the fire, and cannot be burnt easily.
2. Waterproof: moisture-proof pvc material makes the pvc panel become damp-proof, impervious to water.
3. Heat proof: heat insulation because of the hollow core design.
4. Long working life: corrosion-resistant and stable material, make the pvc panel become durable, working life will be 25 years.
5. Light weight: compare with the traditional indoor ceiling and wall decorative material, pvc panel is very light weight, and easy to move.
6. Easy to install and clean, It can be cleaned with Shower-panel Spray Cleaner.
7. Recyclable: PVC panel is 100% recyclable. Our panels can be taken to any plastic recycling facility.
8. No Paint, No need maintenance. Just do not expose it directly to the sunlight.
PVC Wall Panel Parameter Data And Others:
| Parameters |
Moisture Rate
|
≤1% |
|
Noise reduction coefficient
|
0.3-0.5 | |
|
Light reflectance
|
0.75 | |
|
Fireproof Class
|
Class B1 Meet the standard GB8624-1997 | |
| Tolerance | Length <±1mm, width < ±1mm, thickness <±0.5mm | |
|
Sagging resistance prosperities
|
Warranty against visible sag | |
|
Thermal conductivity
|
Resistant to 95% humidity and standing water | |
|
MOQ
|
20GP container | |
|
Percent of pvc
|
45-60% | |
|
Export Markets
|
Global | |
|
Application
|
Ceiling of Office, Hotel, Household, Dust Free Room etc. | |
|
Feature
|
Environmental friendly, Artistic | |
| Function | Rotproof Moistureproof | |
|
Note: color, design, and package could be supplied by customer’s requirement
|
||
PVC Wall Panel Installation:
1. Clean the surface of ceiling.
2. Nail wooden or steel battens(20mm - 30mm thick) into the wall and ceiling, with all the corners firstly, then on the plane with the distance of 400mm away between every wooden batten.
3. Screw PVC profiles(cornices) on all the corners, then insert the panel into the corner profiles, then the folling panel into the first panel.
4. Screw PVC second panel's notch side into the wooden or steel battens, then insert the third panel, then the fourth, and nail the fourth's notch side, then fifth and sixth, then...
5. Attention for the distance and notch side panel: for the ways above is based on 250mm or 300mm wide panels, and wooden or steel battens between distance is 400mm, so every 2 panel, screw the second notch. Surely you could change the ways as per your situation presently, by way of changing the distance of the panels and the wooden or stell battens.
A. Watching
The surface should be even and beautiful. Color and pattern should be in harmony with where to decoration. Panels with bright and single color and clean pattern are better for ceiling usage.
B. Checking the tongue and groove

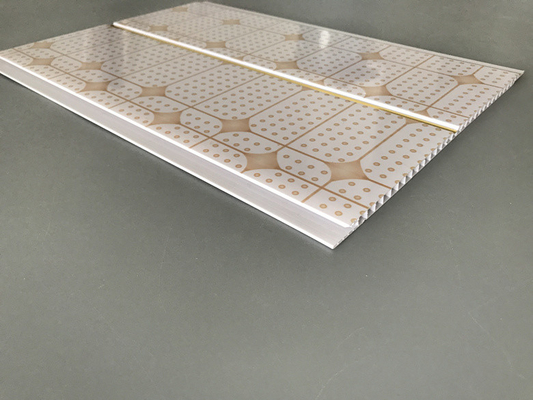

The cut of panel looks like honey comb. It should be clear and sharp. Tongue and groove is on the two sides of nished panels. When install the tongue into the groove, no gap is allowed, and the surface should be even as one complete panel. If installing is not easy, the panels are surely of poor quality.

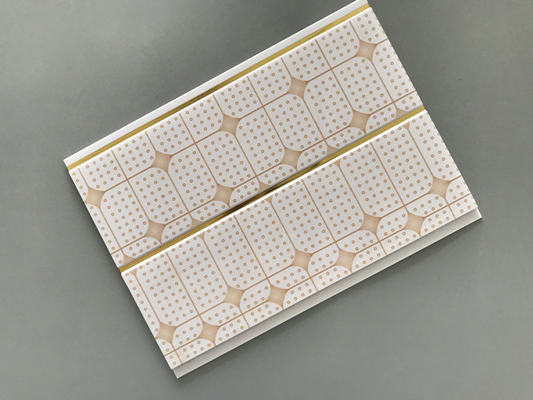

PVC Wall Panel Color Showing:

pvc waterproof wall panels
,laminate wall panels
-
