| Name: | 3mm Blue Polycarbonate Solid Sheet With High Impact Strength For Construction | Type: | Engineering Plastic |
|---|---|---|---|
| Density: | 1.2g/cm³ | Thickness: | 1.5-12mm |
| Standard Width: | 1200-2100mm | Color: | Blue |
| High Light: | impact resistant polycarbonate sheet,uv blocking polycarbonate sheet |
||

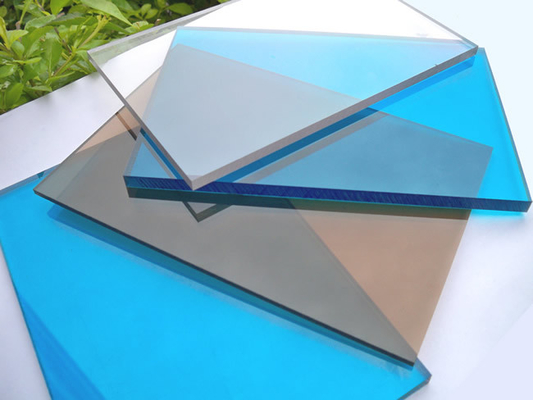

3mm Blue Polycarbonate Solid Sheet With High Impact Strength For Construction
Polycarbonate solid sheets have high impact strength, making them suitable for a wide range of applications ranging from industrial to safety to building and construction. Due to their impact strength and shatter resistance, polycarbonate solid sheets are virtually unbreakable
Properties of Solid Polycarbonate Sheets
1. High transparency (light transmission 50-89%)
2. Easy to process
3. Impact, hail and shatter resistant
4. Can be cold curved and thermofored
5. Coated sheets can have UV and scratch resistance and do not discolour
6. Excellent fire class rating
7. Electrical insulation
Standard Dimensions
|
Thickness (mm)
|
Width×Length (mm) |
Min.Bend Radius (mm) |
Effect of the sound (db) |
Transmittance (%) |
|
1.5
|
1250 x Unlimited | 225 | 23 | 89 |
|
2
|
2100 x Unlimited | 300 | 24 | 88 |
|
2.5-6
|
375-900 | 25-29 | 87-83 | |
|
8
|
1200 | 31 | 82 | |
|
9-12
|
1350-1800 | 31.5-34 | 81-78 |
Technical Data of Polycarbonate Solid Sheet
|
CHARACTERISTICS
|
DATA |
|
Impact Strength
|
850 J/m |
|
Light Tranmission
|
89%-50% |
|
UV Protection Layer
|
50 um |
|
Suitable Temperature
|
-40 ~ +120℃ |
|
Heat Deformation Temp.
|
140℃ |
|
Heat Conductivity
|
2.3-2.9 W/m2℃ |
|
Specific Heat
|
1.17 KJ/KG k |
|
Thermal Expansion Coefficient
|
0.065 mm/m℃ |
|
Bend Strength
|
100 N/mm2 |
|
Tensile Strength
|
>60 N/mm2 |
|
Tensile Force of Breaking
|
>65 N/mm2 |
|
Modulus of Elasticity
|
2400 MPa |
Polycarbonate Solid Sheet Application:
Polycarbonate solid sheets are useful for many applications, such as machine guards windows, rooflights, bus shelters, protective visors and screens, etc.
Coated solid polycarbonate sheets are highly scratch resistant and can be used in aggressive environments. The transparency of solid polycarbonate sheets combined with its light weight allows for easy installation and makes it a popular alternative to glass for building and construction applications.
