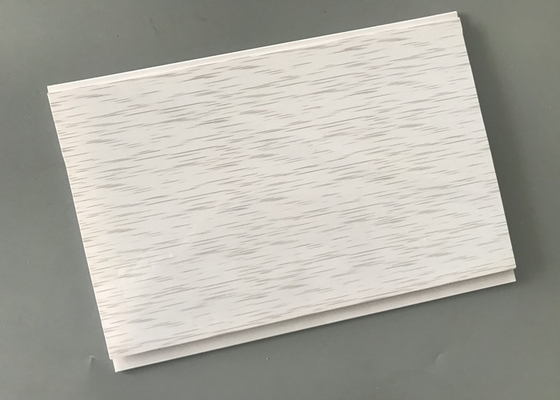

Chemicals Resistant PVC Wall Panels With Flat Slab Shape Surface
Chemicals Resistant PVC Wall Panels With Flat Slab Shape Surface
PVC Wall Panels Surface Processing& Treatment
oil printing,colored painting ,transferred , roller painting and polishing .High intensity, resist erosion, good flexibility, lines or golden line on the surface.
PVC Wall Panels Function
As decorative materials indoor on ceiling, it ’s waterproof fireproof, heat-moisture ,damp-proof and etc.
PVC Wall Panels Specification:
|
Size
|
20cm * 7mm |
|
Length
|
usually be 5.8m or 5.95m |
|
Weight
|
2.5kg per sqm |
|
Package
|
packed with PE film, and each 10pieces will be put into one pack |
|
Surface treatment
|
printing |
PVC Wall Panels Parameter Data And Others:
| Parameters |
Moisture Rate
|
≤1% |
|
Noise reduction coefficient
|
0.3-0.5 | |
|
Light reflectance
|
0.75 | |
|
Fireproof Class
|
Class B1 Meet the standard GB8624-1997 | |
| Tolerance | Length <±1mm, width < ±1mm, thickness <±0.5mm | |
|
Sagging resistance prosperities
|
Warranty against visible sag | |
|
Thermal conductivity
|
Resistant to 95% humidity and standing water | |
|
Percent of pvc
|
40-60% | |
|
Export Markets
|
Global | |
|
Application
|
Ceiling of Office, Hotel, Household, Dust Free Room etc. | |
|
Feature
|
Environmental friendly, Artistic | |
| Function | Rotproof Moistureproof | |
|
Note: color, design, and package could be supplied by customer’s requirement
|
||
PVC Wall Panels Installation:
1. Clean the surface of ceiling.
2. Nail wooden or steel battens(20mm - 30mm thick) into the wall and ceiling, with all the corners firstly, then on the plane with the distance of 400mm away between every wooden batten.
3. Screw PVC profiles(cornices) on all the corners, then insert the panel into the corner profiles, then the folling panel into the first panel.
4. Screw PVC second panel's notch side into the wooden or steel battens, then insert the third panel, then the fourth, and nail the fourth's notch side, then fifth and sixth, then...
5. Attention for the distance and notch side panel: for the ways above is based on 250mm or 300mm wide panels, and wooden or steel battens between distance is 400mm, so every 2 panel, screw the second notch. Surely you could change the ways as per your situation presently, by way of changing the distance of the panels and the wooden or stell battens.
A. Watching
The surface should be even and beautiful. Color and pattern should be in harmony with where to decoration. Panels with bright and single color and clean pattern are better for ceiling usage.
B. Checking the tongue and groove
The cut of panel looks like honey comb. It should be clear and sharp. Tongue and groove is on the two sides of nished panels. When install the tongue into the groove, no gap is allowed, and the surface should be even as one complete panel. If installing is not easy, the panels are surely of poor quality.
PVC Panels for wall and ceiling is great for carport, garages, under eaves, bathrooms, living room, laundry room, kitchen and much more. PVC panels are perfect for areas with moisture issues. It is also great for areas where you just need to quickly spruce up, as you can fix the panel on any surface. You no longer need to remove old wall paper or old wall tiles to revitalize a room. You can now clad over the old ugly wall or ceiling with our PVC panels.
A lot of people are worried about the smell of PVC panel, in the fact if you choose regular factory of the PVC panel, it is non-toxic and tasteless, no stimulation to the skin and respiratory system, for those of timber and paint allergic people, PVC panel is very suitable to use in the home or public place.
PVC Wall Panel Color Showing:
pvc waterproof wall panels
